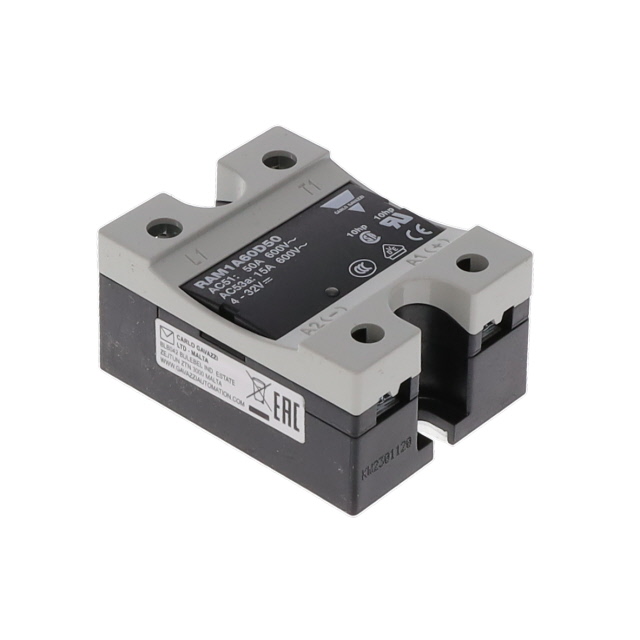

RAM1A60D50
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 50A 42-660V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAM1A60D50
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 50A 42-660V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAM1A60D50 |
|---|---|
| Approval Agency | CSA, VDE, cURus, CE, EAC, UKCA, CCC |
| Load Current | 50 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 660 V |
| Voltage - Load [Min] | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 93.00 | |
| 10 | $ 88.35 | |||
| 50 | $ 83.70 | |||
| 100 | $ 80.91 | |||
Description
General part information
RAM1A6 Series
Solid State SPST-NO (1 Form A) Hockey Puck
Documents
Technical documentation and resources
