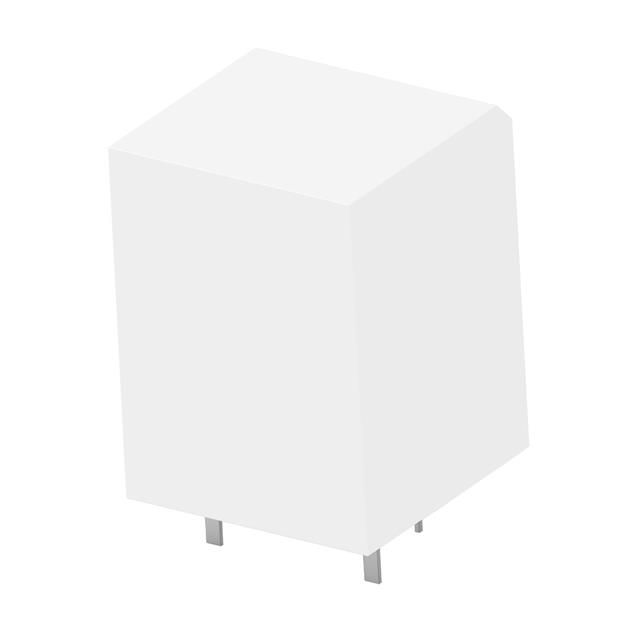

6-1415355-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 6A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-1415355-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 6A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-1415355-1 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 15 mA |
| Coil Insulation | Class F |
| Coil Resistance | 1.6 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.02 | |
| 10 | $ 3.77 | |||
| 25 | $ 3.35 | |||
| 50 | $ 3.19 | |||
| 100 | $ 3.02 | |||
| 250 | $ 2.68 | |||
| 500 | $ 2.51 | |||
| 1050 | $ 2.35 | |||
Description
General part information
1415355 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
