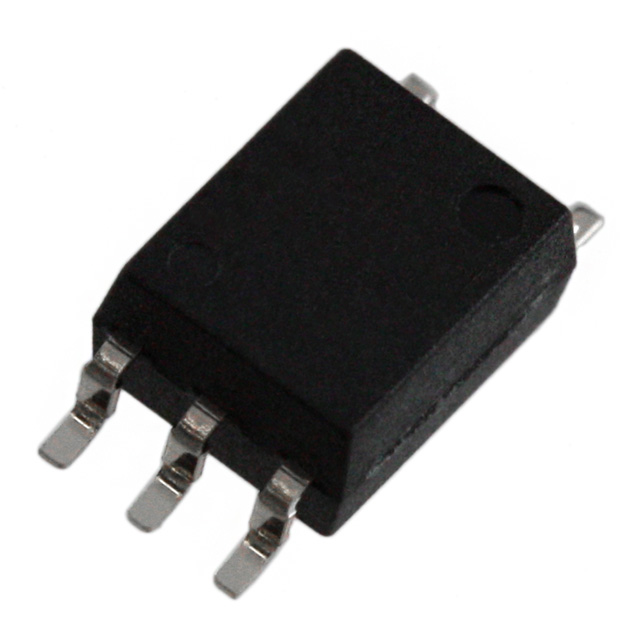

TLP2363(V4-TPL,E

Active

Toshiba Semiconductor and Storage

HIGH SPEED PHOTOCOUPLER; 10MBD;

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

HIGH SPEED PHOTOCOUPLER; 10MBD;

Technical Specifications

Parameters and characteristics for this part

Specification	TLP2363(V4-TPL,E

Common Mode Transient Immunity (Min) [Min]	20 kV/µs
Current - DC Forward (If) (Max) [Max]	25 mA
Current - Output / Channel	25 mA
Data Rate	10 Mbps
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output Type	Open Collector
Package / Case	4.55 mm, 5, 0.179 "
Package / Case	6-SOIC
Rise / Fall Time (Typ) [custom]	7 ns
Rise / Fall Time (Typ) [custom]	23 ns
Supplier Device Package	6-SO
Supplier Device Package	5 Lead
Voltage - Forward (Vf) (Typ)	1.5 V
Voltage - Isolation	3750 Vrms
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Part	Current - Output / Channel	Output Type	Mounting Type	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Supplier Device Package	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Channels	Inputs - Side 1/Side 2 [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Common Mode Transient Immunity (Min) [Min]	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Data Rate
Toshiba Semiconductor and Storage TLP2363(V4-TPL,E	25 mA	Open Collector	Surface Mount	25 mA	6-SO	5 Lead	3750 Vrms	-40 °C	105 ░C	1	1	2.7 V	5.5 V	7 ns	23 ns	DC	20 kV/µs	0.179 " 4.55 mm 5	6-SOIC	1.5 V	10 Mbps
Toshiba Semiconductor and Storage TLP2363(V4,E	25 mA	Open Collector	Surface Mount	25 mA	6-SO	5 Lead	3750 Vrms	-40 °C	105 ░C	1	1	2.7 V	5.5 V	7 ns	23 ns	DC	20 kV/µs	0.179 " 4.55 mm 5	6-SOIC	1.5 V	10 Mbps
Toshiba Semiconductor and Storage TLP2363(TPL,E	25 mA	Open Collector	Surface Mount	25 mA	6-SO	5 Lead	3750 Vrms	-40 °C	105 ░C	1	1	2.7 V	5.5 V	7 ns	23 ns	DC	20 kV/µs	0.179 " 4.55 mm 5	6-SOIC	1.5 V	10 Mbps
Toshiba Semiconductor and Storage TLP2363(E	25 mA	Open Collector	Surface Mount	25 mA	6-SO	5 Lead	3750 Vrms	-40 °C	105 ░C	1	1	2.7 V	5.5 V	7 ns	23 ns	DC	20 kV/µs	0.179 " 4.55 mm 5	6-SOIC	1.5 V	10 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 20kV/µs CMTI 6-SO, 5 Lead
