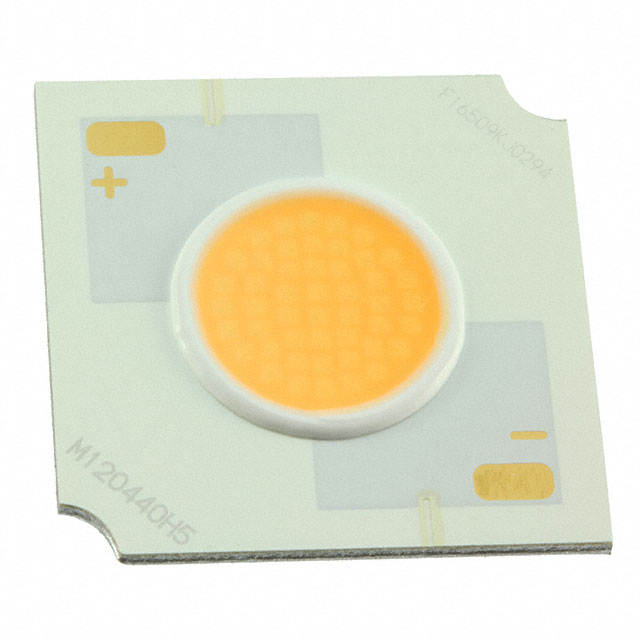

CLU711-1204C4-403H5K2

Active

Citizen Finedevice Co Ltd

LED COB CLU711 NEUT WH SQ 4000K

Search across all available documentation for this part.

Active

Citizen Finedevice Co Ltd

LED COB CLU711 NEUT WH SQ 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	CLU711-1204C4-403H5K2

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	920 mA
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	8.5 mm
Lumens/Watt @ Current - Test	100 lm/W
Luminous Flux @ Current/Temperature	2619 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	37.6 V

Part	Current - Max [Max]	Lens Type	Voltage - Forward (Vf) (Typ)	Temperature - Test	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Type	Color	Configuration	Lumens/Watt @ Current - Test	CCT (K)	Size / Dimension [y]	Size / Dimension [x]
Citizen Finedevice Co Ltd CLU711-1204C4-403H5K2	920 mA	Flat	37.6 V	85 °C	2619 lm	8.5 mm	90	Chip On Board (COB)	Neutral White	Square	100 lm/W	4000 K	19 mm	19 mm
Citizen Finedevice Co Ltd CLU711-1204C4-303M2K1	920 mA	Flat	37.6 V	85 °C	3042 lm	8.5 mm	80	Chip On Board (COB)	Warm White	Square	116 lm/W		19 mm	19 mm
Citizen Finedevice Co Ltd CLU711-1204C4-353H5K2	920 mA	Flat	37.6 V	85 °C	2565 lm	8.5 mm	90	Chip On Board (COB)	Warm White	Square	97 lm/W	3500 K	19 mm	19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU711 White, Neutral Square

Technical documentation and resources

No documents available
