R316754000

Active

Radiall USA, Inc.

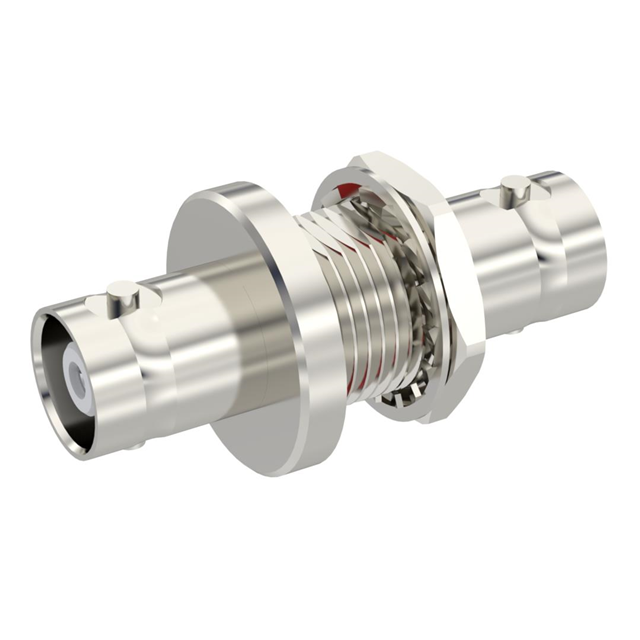

BNC HT-MHV / FEMALE-FEMALE ADAPT

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC HT-MHV / FEMALE-FEMALE ADAPT

Technical Specifications

Parameters and characteristics for this part

Specification	R316754000

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE), Polyethylene (PE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Body Finish	Impedance	Style	Convert To (Adapter End)	Mating Cycles	Convert From (Adapter End)	Center Gender	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Conversion Type	Center Contact Plating	Adapter Type	Mounting Feature	Dielectric Material	Fastening Type	Adapter Series	Frequency - Max [Max]	Center Contact Material
Radiall USA, Inc. R316754000	Nickel	50 Ohms	Straight	BNC Jack Female Socket	500	BNC Jack Female Socket	Female to Female	155 °C	-55 °C	Brass	Same Series	Silver	Jack to Jack	Bulkhead	Polyethylene (PE) Polytetrafluoroethylene (PTFE)	Bayonet Lock	BNC to BNC	2 GHz	Beryllium Copper Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 131.45

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
