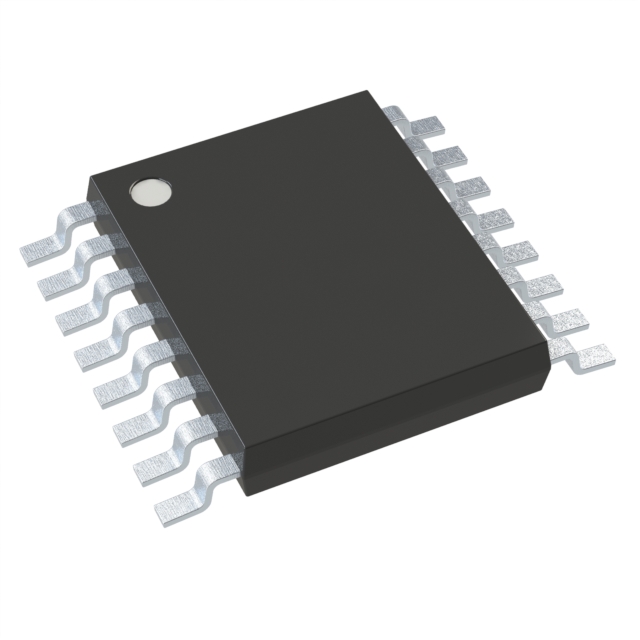

74AHC139PW,118
ActiveFreescale Semiconductor - NXP
IC DECODER/DEMUX 1X2:4 16-TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74AHC139PW,118
ActiveFreescale Semiconductor - NXP
IC DECODER/DEMUX 1X2:4 16-TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74AHC139PW,118 |
|---|---|
| Circuit | 1 x 2:4 |
| Current - Output High, Low [custom] | 8 mA |
| Current - Output High, Low [custom] | 8 mA |
| Independent Circuits | 2 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 16-TSSOP |
| Type | Decoder/Demultiplexer |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3037 | $ 0.10 | |
| Cut Tape (CT) | 1 | $ 0.39 | ||
| 10 | $ 0.33 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.33 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 2500 | $ 0.12 | ||
| 5000 | $ 0.11 | |||
| 7500 | $ 0.11 | |||
| 12500 | $ 0.10 | |||
| 17500 | $ 0.10 | |||
| 25000 | $ 0.10 | |||
| 62500 | $ 0.10 | |||
Description
General part information
74AHC139 Series
Decoder/Demultiplexer 1 x 2:4 16-TSSOP
