G17S0910110EU
ActiveAmphenol ICC (Commercial Products)

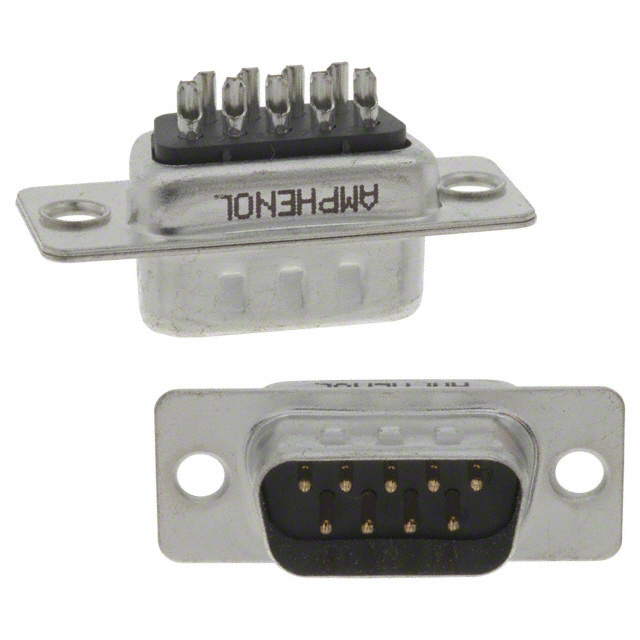

CONN D-SUB PLUG 9POS SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
G17S0910110EU
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 9POS SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G17S0910110EU |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.89 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.68 | |||
| 250 | $ 0.61 | |||
| 450 | $ 0.55 | |||
| 950 | $ 0.49 | |||
| 2400 | $ 0.45 | |||
Description
General part information
G17S09 Series
9 Position D-Sub Plug, Male Pins Connector
