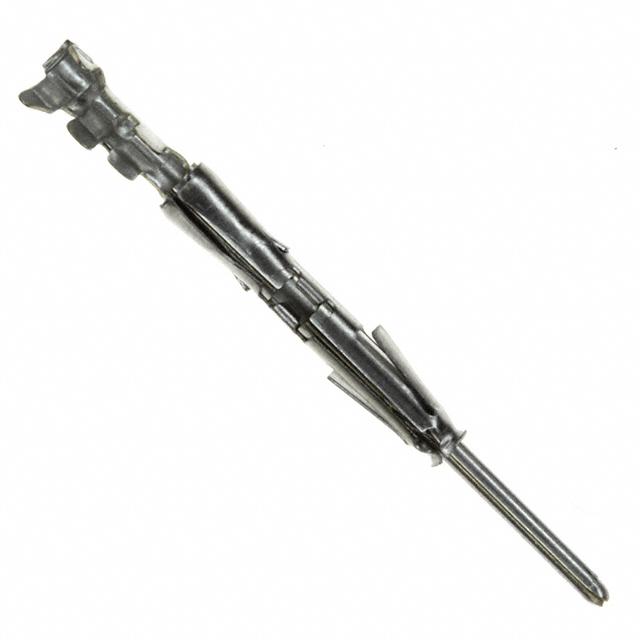

SM20WL-3TK6
ActiveSouriau-Sunbank by Eaton
CONTACT PIN 20-22AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
SM20WL-3TK6
ActiveSouriau-Sunbank by Eaton
CONTACT PIN 20-22AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM20WL-3TK6 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Features | Insulation Support |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 20 AWG |
| Wire Gauge or Range - mm² [Max] | 0.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.32 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.75 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.45 | |||
| 50 | $ 1.42 | |||
| 100 | $ 1.36 | |||
| 300 | $ 1.23 | |||
| 500 | $ 1.13 | |||
| 1000 | $ 0.97 | |||
| 2500 | $ 0.90 | |||
Description
General part information
SM20WL Series
Pin Contact 20-22 AWG Size 20 Crimp Tin
Documents
Technical documentation and resources
No documents available
