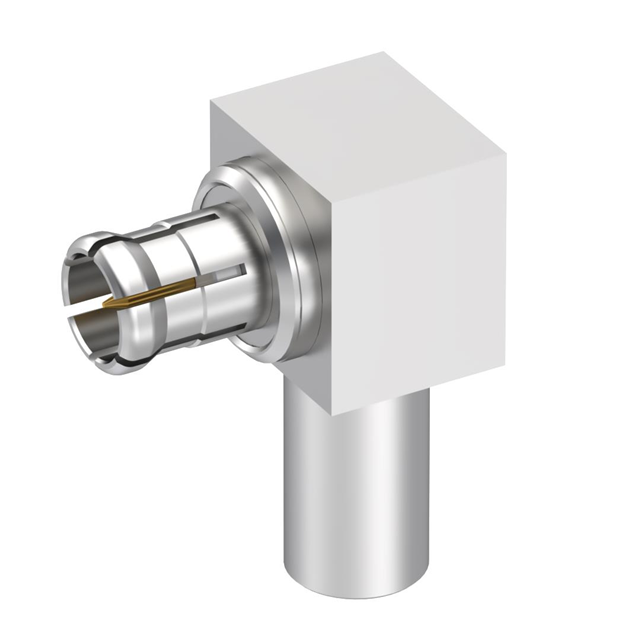

R213182007

Active

Radiall USA, Inc.

MCX / RIGHT ANGLE PLUG CRIMP TYP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MCX / RIGHT ANGLE PLUG CRIMP TYP

Technical Specifications

Parameters and characteristics for this part

Specification	R213182007

Body Finish	Gold
Body Material	Brass
Cable Group	187, RG-179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Connector Type	Body Material	Contact Termination	Shield Termination	Fastening Type	Impedance	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Voltage Rating	Center Contact Material	Connector Style	Dielectric Material	Number of Ports	Mounting Type	Center Contact Plating	Cable Group	Housing Color	Body Finish
Radiall USA, Inc. R213182007	Male Pin Plug	Brass	Crimp	Crimp	Snap-On	75 Ohms	6000 MHz	155 °C	-55 °C	500	335 V	Beryllium Copper	MCX	Polytetrafluoroethylene (PTFE)	1	Free Hanging (In-Line) Right Angle	Gold	187 RG-179	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Crimp
