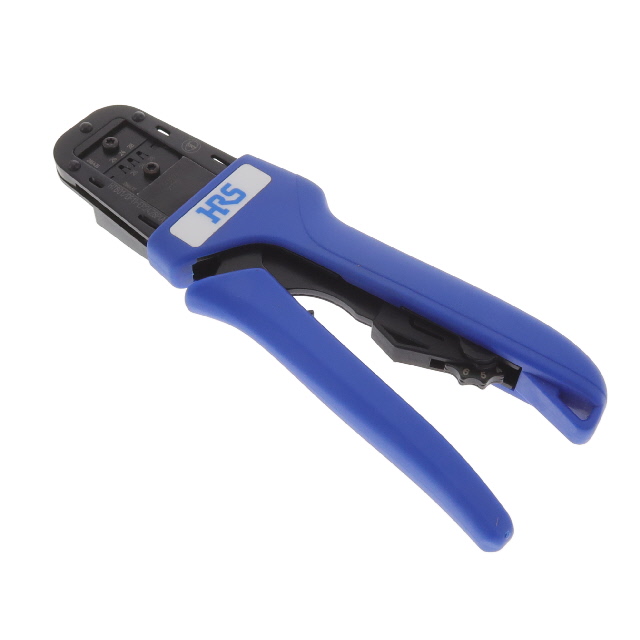

HT801/DF11-EP2428P(A)

Active

Hirose Electric USA, Inc.

TOOL HAND CRIMPER 24-28AWG SIDE

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

TOOL HAND CRIMPER 24-28AWG SIDE

Technical Specifications

Parameters and characteristics for this part

Specification	HT801/DF11-EP2428P(A)

For Use With/Related Products	Rectangular Contacts
Ratcheting	False
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	24 AWG

Part	For Use With/Related Products	Wire Entry Location	Wire Gauge or Range - AWG	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]
Hirose Electric USA, Inc. HT801/DF11-30S(A)	Rectangular Contacts	Side Entry	30 AWG	Hand Crimper
Hirose Electric USA, Inc. HT801/DF59-22P	Solid State Lighting Contacts		22 AWG	Hand Crimper
Hirose Electric USA, Inc. HT801/DF62-2428(10)	Rectangular Contacts			Hand Crimper	24 AWG	28 AWG
Hirose Electric USA, Inc. HT801/DF11-EP2428P(A)	Rectangular Contacts	Side Entry		Hand Crimper	24 AWG	28 AWG
Hirose Electric USA, Inc. HT801/DF11-2428S(A)	Rectangular Contacts	Side Entry		Hand Crimper	24 AWG	28 AWG
Hirose Electric USA, Inc. HT801/DF51K-30S(A)	SignalBee™ DF51K Series	Side Entry	30 AWG	Hand Crimper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Rectangular Contacts
