C4RXS-1406G

Active

CW Industries

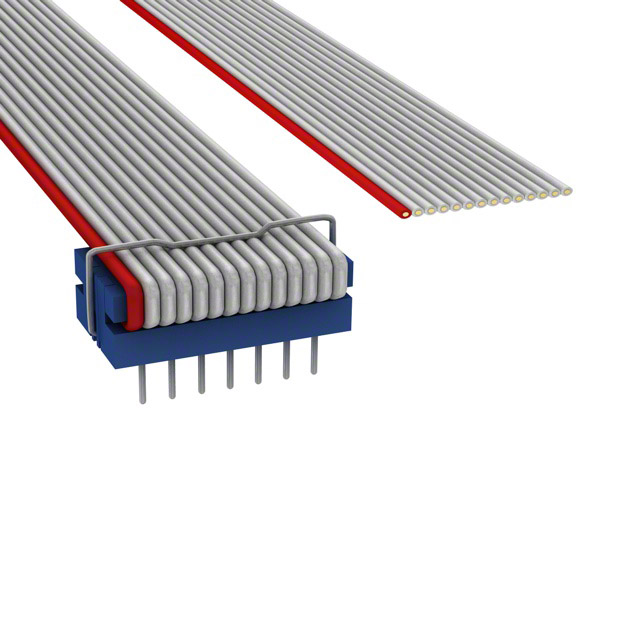

DIP CABLE - CDR14S/AE14G/X

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR14S/AE14G/X

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pitch - Cable	Pitch - Cable	Shielding	Features	Cable Termination	Connector Type	Pitch - Connector	Pitch - Connector	Number of Positions	Number of Rows	Usage	Length [x]	Length [x]	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Length	Length	Length
CW Industries C4RXS-1418M	Tin	0.05 "	1.27 mm	Unshielded	Strain Relief	IDC	DIP to Cable	0.1 in	2.54 mm	14	2	Board In Socket (0.3")	457.2 mm	1.5 ft	Multiple Ribbon	2.54 µm	100 µin
CW Industries C4RXS-1636G	Tin	0.05 "	1.27 mm	Unshielded	Strain Relief	IDC	DIP to Cable	0.1 in	2.54 mm		2	Board In Socket (0.3")	914.4 mm	3 ft		2.54 µm	100 µin	16
CW Industries C4RXS-1618M	Tin	0.05 "	1.27 mm	Unshielded	Strain Relief	IDC	DIP to Cable	0.1 in	2.54 mm		2	Board In Socket (0.3")	457.2 mm	1.5 ft	Multiple Ribbon	2.54 µm	100 µin	16
CW Industries C4RXS-1406G	Tin	0.05 "	1.27 mm	Unshielded	Strain Relief	IDC	DIP to Cable	0.1 in	2.54 mm	14	2	Board In Socket (0.3")				2.54 µm	100 µin		152.4 mm	6 "	0.5 '
CW Industries C4RXS-1606M	Tin	0.05 "	1.27 mm	Unshielded	Strain Relief	IDC	DIP to Cable	0.1 in	2.54 mm		2	Board In Socket (0.3")			Multiple Ribbon	2.54 µm	100 µin	16	152.4 mm	6 "	0.5 '
CW Industries C4RXS-1436M	Tin	0.05 "	1.27 mm	Unshielded	Strain Relief	IDC	DIP to Cable	0.1 in	2.54 mm	14	2	Board In Socket (0.3")	914.4 mm	3 ft	Multiple Ribbon	2.54 µm	100 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Cable Assembly Rectangular DIP to Cable 0.500' (152.40mm, 6.00")
