TCR4DG25,LF

Active

Toshiba Semiconductor and Storage

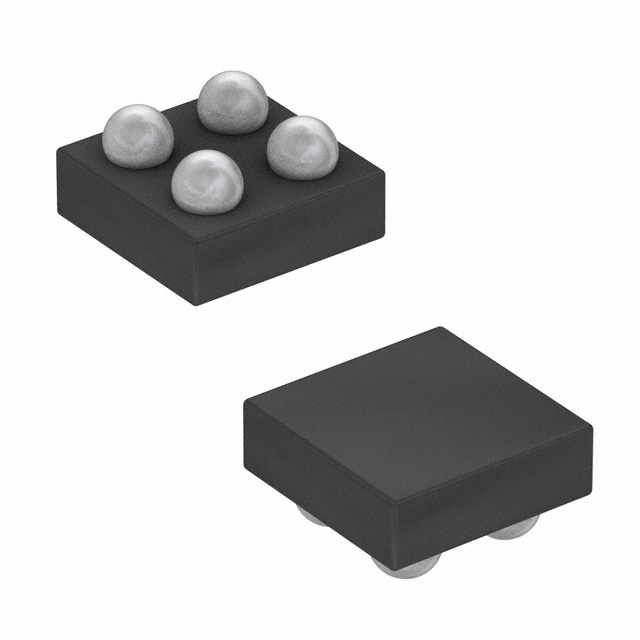

IC REG LINEAR 2.5V 420MA 4WCSPE

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC REG LINEAR 2.5V 420MA 4WCSPE

Technical Specifications

Parameters and characteristics for this part

Specification	TCR4DG25,LF

Control Features	Enable
Current - Output	420 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	CSPBGA, 4-XFBGA
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR	70 dB
Supplier Device Package	4-WCSPE
Supplier Device Package [x]	0.65
Supplier Device Package [y]	0.65
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	2.5 V
Voltage Dropout (Max) [Max]	0.347 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Output Configuration	PSRR	Output Type	Voltage - Output (Min/Fixed)	Number of Regulators	Current - Output	Voltage Dropout (Max) [Max]	Mounting Type	Control Features	Protection Features	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case
Toshiba Semiconductor and Storage TCR4DG25,LF	85 °C	-40 °C	5.5 V	Positive	70 dB	1.81 mOhm	2.5 V	1	420 mA	0.347 V	Surface Mount	Enable	Over Current Over Temperature Short Circuit	4-WCSPE	0.65	0.65	4-XFBGA CSPBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 420mA 4-WCSPE (0.65x0.65)
