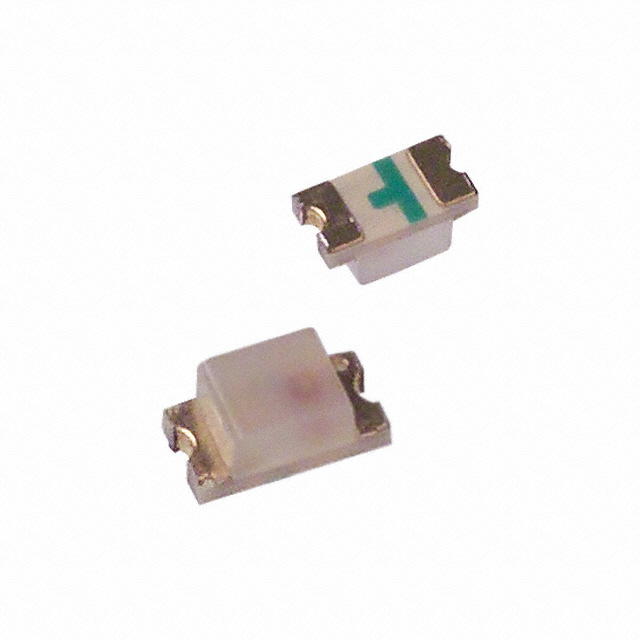

HSMW-C191-U0000
ActiveBroadcom Limited
LED WHITE TOP MNT 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
HSMW-C191-U0000
ActiveBroadcom Limited
LED WHITE TOP MNT 2SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMW-C191-U0000 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Size [x] | 1 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 950 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.69 | |||
| 100 | $ 0.45 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 1.05 | ||
| 10 | $ 0.69 | |||
| 100 | $ 0.45 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.33 | |||
| Tape & Reel (TR) | 4000 | $ 0.33 | ||
| 8000 | $ 0.32 | |||
| 12000 | $ 0.31 | |||
| 28000 | $ 0.31 | |||
Description
General part information
HSMW-C191 Series
White LED Indication - Discrete 3.4V 0603 (1608 Metric)
