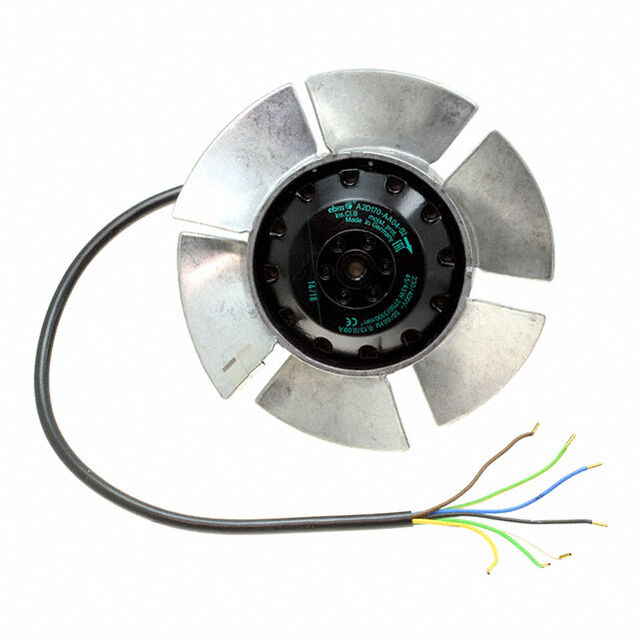

A2D170-AA04-02

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 230V/400V

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 230V/400V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Blade	Fan Type	Width [y]	Weight	Weight	Features	Bearing Type	Termination	Power (Watts)	Size / Dimension [diameter]	Ingress Protection	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Width [x]
ebm-papst Inc. A2D170-AA04-02	230 VAC 400 VAC	3100 RPM	-25 °C	-25 °C	70 °C	70 °C	Aluminum	Tubeaxial 3 Phase	62.5 mm	2.6 lbs	1.2 kg	Dual Voltage	Ball	7 Wire Leads	43 W	170 mm	IP44
ebm-papst Inc. A2D170-AA04-01		3100 RPM	-25 °C	-25 °C	70 °C	70 °C	Aluminum	Tubeaxial 3 Phase				Dual Voltage	Ball	7 Wire Leads with Splice Terminals	43 W	170 mm	IP44	0.09 A	0.16 A	64.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial, 3 Phase 230/400VAC Round - 170mm Dia Ball 7 Wire Leads
