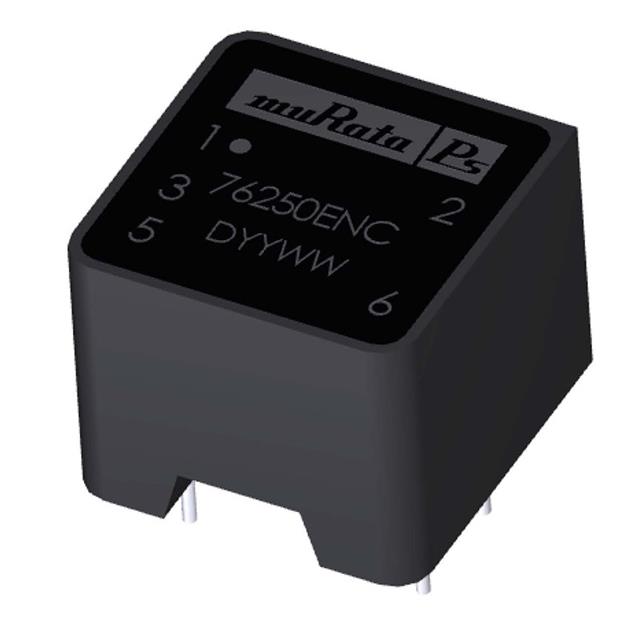

76250ENC

Active

Murata Power Solutions Inc.

XFRMR MAX250 EN60950 APPROVED

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

XFRMR MAX250 EN60950 APPROVED

Technical Specifications

Parameters and characteristics for this part

Specification	76250ENC

Height - Seated (Max) [Max] [z]	0.502 in
Height - Seated (Max) [Max] [z]	12.75 mm
Inductance	2 mH
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	0.591 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	15 mm
Size / Dimension [y]	0.591 in
Transformer Type	Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary	1CT:1

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Turns Ratio - Primary:Secondary	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Transformer Type
Murata Power Solutions Inc. 76250ENC	0.591 in	15 mm	15 mm	0.591 in	2 mH	0.502 in	12.75 mm	1CT:1	70 °C	0 °C	Through Hole	Isolation and Data Interface (Encapsulated)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1 Through Hole
