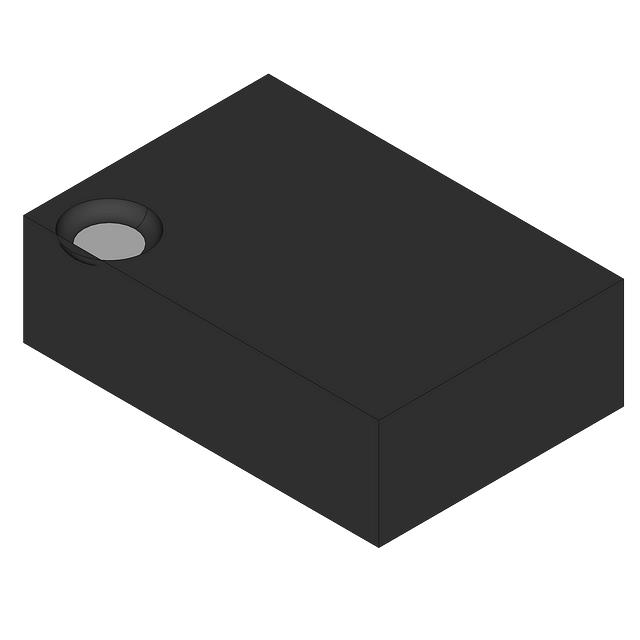

74AHCT1G04GM,115

Active

Freescale Semiconductor - NXP

74AHCT1G04 - INVERTER

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

74AHCT1G04 - INVERTER

Technical Specifications

Parameters and characteristics for this part

Specification	74AHCT1G04GM,115

null

Part	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Grade	Current - Quiescent (Max) [Max]	Input Logic Level - Low	Number of Circuits	Mounting Type	Number of Inputs	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Max Propagation Delay @ V, Max CL	Voltage - Supply [Min]	Voltage - Supply [Max]
Freescale Semiconductor - NXP 74AHCT1G04GW-Q100H	AEC-Q100	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353	Automotive	1 çA	0.8 V	1	Surface Mount	1	Inverter	8 mA	8 mA	5-TSSOP	7.7 ns	4.5 V	5.5 V
Freescale Semiconductor - NXP 74AHCT1G04GM,115
Freescale Semiconductor - NXP 74AHCT1G04GW,165		125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353		1 çA	0.8 V	1	Surface Mount	1	Inverter	8 mA	8 mA	5-TSSOP	7.7 ns	4.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4594	$ 0.07

General part information

IC Channel

Technical documentation and resources
