094,BK

Active

Serpac

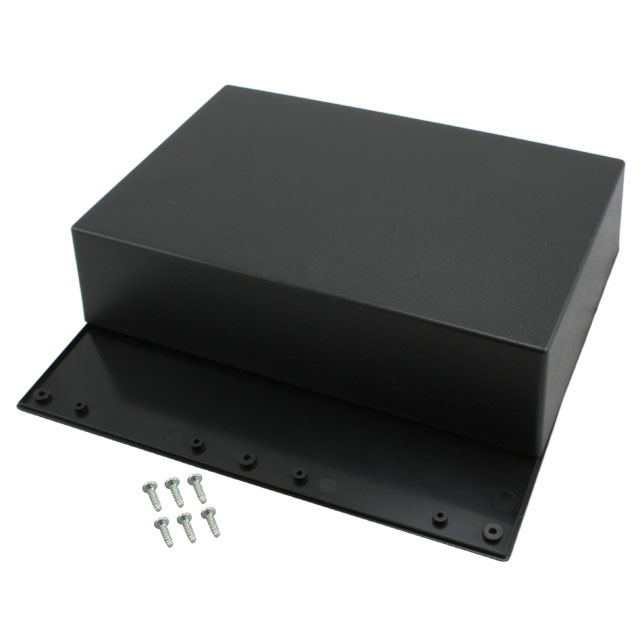

BOX ABS BLACK 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	094,BK

Area (L x W)	388 cm²
Area (L x W)	60.2 in²
Color	Black
Container Type	Box
Design	Cover Included, Hand Held
Features	PCB Supports
Height [z]	60.96 mm
Height [z]	2.4 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.69 lb
Weight	312.98 g

Part	Container Type	Weight	Weight	Features	Thickness	Thickness	Height [z]	Height [z]	Ratings	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Material	Color	Area (L x W)	Area (L x W)	Material Flammability Rating
Serpac 094,BK	Box	0.69 lb	312.98 g	PCB Supports	2.54 mm	0.1 in	60.96 mm	2.4 in	IP40 NEMA 1	Cover Included Hand Held	9.5 "	6.34 "	161.04 mm 241.3 mm	Plastic ABS	Black	388 cm²	60.2 in²	UL94 HB
Serpac 094,AL	Box	0.69 lb	312.98 g	PCB Supports	2.54 mm	0.1 in	60.96 mm	2.4 in	IP40 NEMA 1		9.5 "	6.34 "	161.04 mm 241.3 mm	Plastic ABS	Almond	388 cm²	60.2 in²	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Cover Included 9.500" L x 6.340" W (241.30mm x 161.04mm) X 2.400" (60.96mm)

Technical documentation and resources

No documents available
