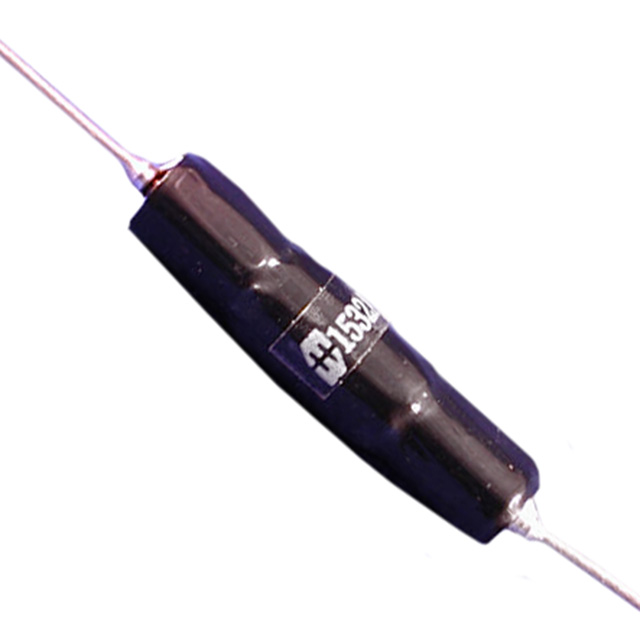

1532A

Active

Hammond Manufacturing

FIXED IND 10UH 1.5A 110 MOHM TH

Search across all available documentation for this part.

Active

Hammond Manufacturing

FIXED IND 10UH 1.5A 110 MOHM TH

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Tolerance	Mounting Type	Shielding	Inductance Frequency - Test	Q @ Freq	Frequency - Self Resonant	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Inductance	Type	DC Resistance (DCR) [Max]	Current Rating (Amps)	DC Resistance (DCR)
Hammond Manufacturing 1532B	Axial	10 %	Through Hole	Unshielded	2.5 MHz	2.5 MHz 62	33 MHz	0.29 in	22.22 mm	0.875 in	7.37 mm	15 µH	Wirewound	170 mOhm	1 A
Hammond Manufacturing 1532C	Axial	10 %	Through Hole	Unshielded	2.5 MHz	2.5 MHz 65	25 MHz	0.29 in	22.22 mm	0.875 in	7.37 mm	24 µH	Wirewound	340 mOhm	800 mA
Hammond Manufacturing 1532H	Axial	10 %	Through Hole	Unshielded	790 kHz	107 790 kHz	12 MHz	0.29 in	22.22 mm	0.875 in	7.37 mm	100 µH	Wirewound	3 Ohm	400 mA
Hammond Manufacturing 1532A	Axial	10 %	Through Hole	Unshielded	2.5 MHz	2.5 MHz 69	40 MHz	0.29 in	22.22 mm	0.875 in	7.37 mm	10 µH	Wirewound		1.5 A	110 mOhm
Hammond Manufacturing 1532D	Axial	10 %	Through Hole	Unshielded	2.5 MHz	2.5 MHz 70	200 kHz	0.29 in	22.22 mm	0.875 in	7.37 mm	39 µH	Wirewound		600 mA	650 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µH Unshielded Wirewound Inductor 1.5 A 110mOhm Max Axial
