Q2038897

Unknown

Panasonic Industrial Automation Sales

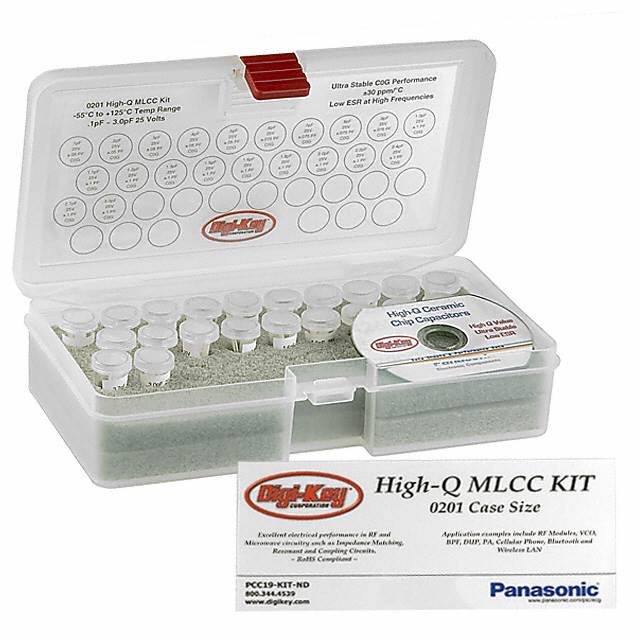

CAP KIT CERAMIC 0.1PF-3PF 420PCS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q2038897

Unknown

Panasonic Industrial Automation Sales

CAP KIT CERAMIC 0.1PF-3PF 420PCS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q2038897

Applications	High Frequency, Microwave, RF
Capacitance Range [Max]	3 pF
Capacitance Range [Min]	0.1 pF
Features	Low Loss, High Q
Kit Type	Ceramic
Mounting Type	Surface Mount, MLCC
Packages Included	0201 (0603 Metric)
Quantity	420 Pieces
Voltage - Rated	25 VDC

- Series

Part	Voltage - Rated [Min]	Voltage - Rated [Max]	Packages Included	Packages Included	Capacitance Range [Max]	Capacitance Range [Min]	Mounting Type	Quantity	Applications	Tolerance	Kit Type	Voltage - Rated	Packages Included	Inductance Range [Min]	Inductance Range [Max]	Style	Material - Core	Inductance Range [Min] [custom]	Inductance Range [Max] [custom]	Packages Included	Features	Termination Style	Resistive Material	Resistance (Ohms) [Min]	Resistance (Ohms) [Max]	Number of Turns	Power (Watts)	Power (Watts)
Panasonic Industrial Automation Sales Q1967141	2 V	16 V	2917	7343 Metric	470 µF	8.2 µF	Surface Mount	180 Pieces	General Purpose	20 %
Panasonic Industrial Automation Sales Q15758					0.22 µF	1000 pF	Through Hole	150 Pieces	General Purpose	10 %	Film	200 V	Radial
Panasonic Industrial Automation Sales Q333186							Surface Mount	200 Pieces			Fixed		0402 (1005 Metric)	1 nH	39 nH	Multilayer	Non-Magnetic
Panasonic Industrial Automation Sales Q286212							Surface Mount	250 Pieces			Fixed		0805 (2012 Metric)			Wirewound	Non-Magnetic	10 nH	1 µH
Panasonic Industrial Automation Sales Q2636043	6.3 V	25 V			22 µF	1 µF	MLCC Surface Mount	20 Each 400 Pieces	General Purpose	10 % 20 %	Ceramic		0402 ~ 1206							1005 ~ 3216
Panasonic Industrial Automation Sales Q2038982					15 pF	0.1 pF	MLCC Surface Mount	600 Pieces	High Frequency Microwave RF	0.05 pF 0.075 pF 0.1 pF 0.25 pF 5 %	Ceramic	25 VDC	0402 (1005 Metric)								High Q Low Loss
Panasonic Industrial Automation Sales Q227224								150 Pieces		25 %	Trimmer											J Lead	Cermet	220 Ohms	1M	1	1 W	20 W
Panasonic Industrial Automation Sales Q1157998	10 V	50 V			0.1 µF	100 pF	MLCC Surface Mount	300 Pieces	General Purpose	10 %	Ceramic		0402 (1005 Metric)
Panasonic Industrial Automation Sales Q2038897					3 pF	0.1 pF	MLCC Surface Mount	420 Pieces	High Frequency Microwave RF		Ceramic	25 VDC	0201 (0603 Metric)								High Q Low Loss
Panasonic Industrial Automation Sales Q1158089	50 V	200 V			0.01 µF	470 pF	MLCC Surface Mount	140 Pieces	General Purpose	5 %	Ceramic		1206							3216 Metric

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

Ceramic Capacitor Kit 0.1pF ~ 3pF 25V Surface Mount, MLCC 420 Pieces (21 Values - 20 Each)
