CTP580STD

Active

HELLERMANNTYTON

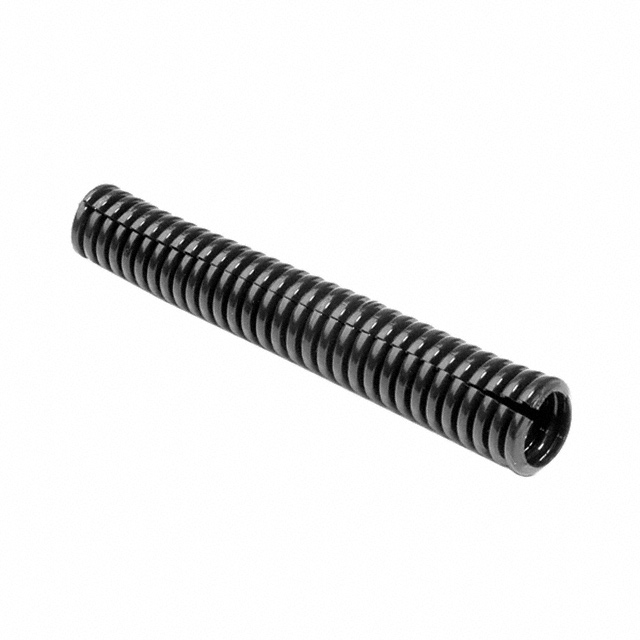

SLIT WRAP 5/8" X 800' BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SLIT WRAP 5/8" X 800' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	CTP580STD

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	0.639 in
Diameter - Inside, Expanded [diameter]	16.23 mm
Diameter - Inside, Non-Expanded [diameter]	15.88 mm
Diameter - Inside, Non-Expanded [diameter]	0.625 in
Diameter - Outside, Non-Expanded [diameter]	0.805 "
Diameter - Outside, Non-Expanded [diameter]	20.45 mm
Environment Protection	Weather Resistant
Features	Impact Resistant, Vibration Resistant
Length	800 ft
Length	243.84 m
Liquid Protection	Water Resistant, Fluid Resistant
Material	Polyethylene (PE)
Material Flammability Rating	UL94 HB
Operating Temperature [Max]	93 °C
Operating Temperature [Min]	-40 °C
Type	Slit Wrap
Type Attributes	Slit Harness
Wall Thickness	0.13 mm
Wall Thickness	0.005 "

Part	Color	Features	Type	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Liquid Protection	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Environment Protection	Abrasion Protection	Wall Thickness	Wall Thickness	Type Attributes	Material Flammability Rating	Material	Length	Length	Length [x]
HELLERMANNTYTON CTP580STD	Black	Impact Resistant Vibration Resistant	Slit Wrap	0.805 "	20.45 mm	Fluid Resistant Water Resistant	-40 °C	93 °C	0.639 in	16.23 mm	15.88 mm	0.625 in	Weather Resistant	Abrasion Resistant	0.13 mm	0.005 "	Slit Harness	UL94 HB	Polyethylene (PE)	800 ft	243.84 m
HELLERMANNTYTON CTP580	Black	Impact Resistant Vibration Resistant	Slit Wrap	0.805 "	20.45 mm	Fluid Resistant Water Resistant	-40 °C	93 °C	0.639 in	16.23 mm	15.88 mm	0.625 in	Weather Resistant	Abrasion Resistant	0.13 mm	0.005 "	Slit Harness	UL94 HB	Polyethylene (PE)		1676.4 m	5500 ft
