Q-7104G0003001M

Active

Amphenol Custom Cable

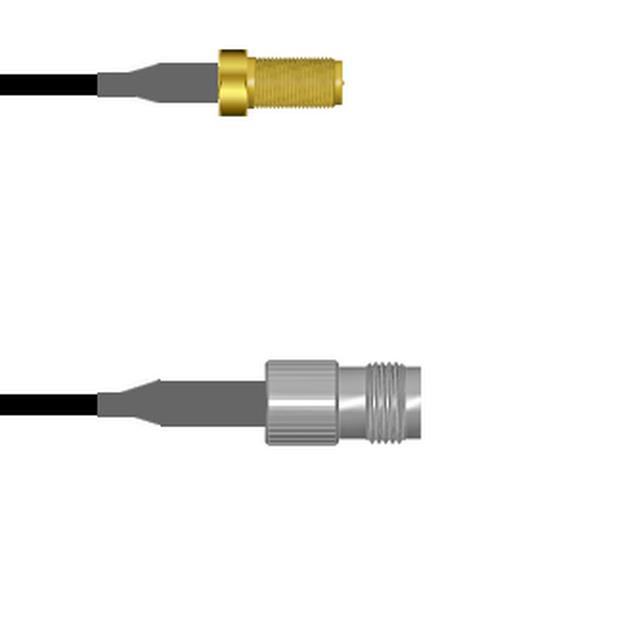

CBL ASSY RPSMA-TNC JCK-JCK 3.3'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY RPSMA-TNC JCK-JCK 3.3'

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Length	Style	Connector Impedance	Overall Impedance	Frequency - Max [Max]	1st Contact Gender	Cable Type	2nd Connector	1st Connector	Features	1st Connector Mounting Type	Cable Impedance	2nd Connector Mounting Type	Color	2nd Contact Gender
Amphenol Custom Cable Q-7104G0003001M	1 m	3.3 ft	39.4 in	RP-SMA to TNC	50 Ohms	50 Ohms	1 GHz	Male	RG-174	TNC Jack	RP-SMA Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Black	Female
Amphenol Custom Cable Q-7104G00030.5M	50 cm		19.69 "	RP-SMA to TNC	50 Ohms	50 Ohms	1 GHz	Male	RG-174	TNC Jack	RP-SMA Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Black	Female
Amphenol Custom Cable Q-7104G0003003I	76.2 mm		3 in	RP-SMA to TNC	50 Ohms	50 Ohms	1 GHz	Male	RG-174	TNC Jack	RP-SMA Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Black	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to TNC RG-174 39.4" (1.0m) 3.3'
