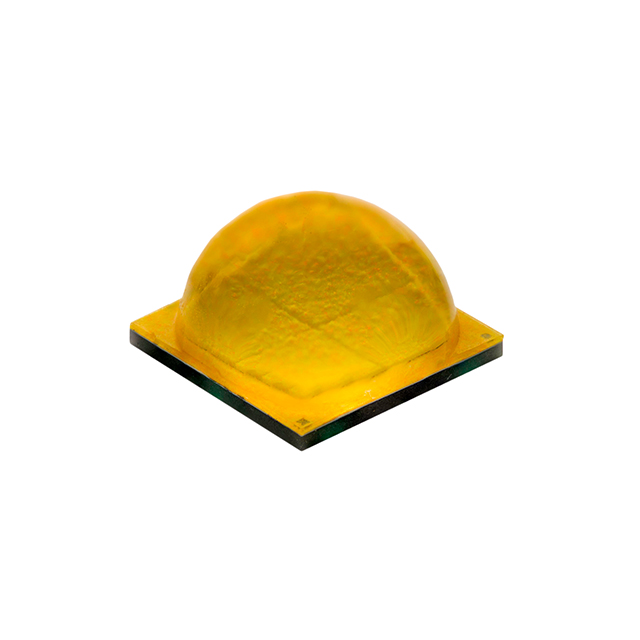

XHP70B-00-0000-0D0BP20E2

Active

Cree LED

XLAMP XHP70 GEN 2 LIGHT EMITTING DIODE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XHP70B-00-0000-0D0BP20E2

Active

Cree LED

XLAMP XHP70 GEN 2 LIGHT EMITTING DIODE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP70B-00-0000-0D0BP20E2

CCT (K)	5700 K
Color	Cool, White
CRI (Color Rendering Index)	70
Current - Max	2.4 A, 4.8 A
Current - Test	1.05 A
Current - Test	2.1 A
Flux @ 85°C, Current - Test	1898 lm
Height - Seated (Max) [Max]	0.171 in
Height - Seated (Max) [Max]	4.35 mm
Lumens/Watt @ Current - Test	161 lm/W
Mounting Type	Surface Mount
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Supplier Device Package	2-SMD
Thermal Resistance of Package	0.9 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	6 V, 12 V

XHP70B Series

Part	Voltage - Forward (Vf) (Typ)	Current - Test	Flux @ 85°C, Current - Test	CRI (Color Rendering Index)	Thermal Resistance of Package [custom]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Color	Viewing Angle	CCT (K)	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Thermal Resistance of Package	Current - Max	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	CCT (K)	Flux @ 85°C, Current - Test
Cree LED XHP70B-00-0000-0D0HP250G	11.2 V	1.05 A	1898 lm	80	0.3 °C/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	2828	4.48 mm	0.176 "	161 lm/W	Cool White	125 °
Cree LED XHP70B-00-0000-0D0UM440H	11.2 V	1.05 A	1538 lm	90	0.3 °C/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	2828	4.48 mm	0.176 "	131 lm/W	Neutral White	125 °	4000 K	1485 lm	1590 lm
Cree LED XHP70B-00-0000-0D0HM227H	6 V 12 V	2.1 A	1433 lm	80		Surface Mount	7 mm	0.276 in	0.276 "	7 mm				122 lm/W	Warm White	125 °	2700 K	1380 lm	1485 lm	0.9 °C/W	2.4 A 4.8 A	1.05 A	0.171 in	4.35 mm	2-SMD
Cree LED XHP70B-00-0000-0D00P20DV	6 V 12 V	2.1 A	1898 lm	68		Surface Mount	7 mm	0.276 in	0.276 "	7 mm				161 lm/W	Cool White	125 °	6000 K			0.9 °C/W	2.4 A 4.8 A	1.05 A	0.171 in	4.35 mm	2-SMD
Cree LED XHP70B-00-0000-0D0BP20E2	6 V 12 V	2.1 A	1898 lm	70		Surface Mount	7 mm	0.276 in	0.276 "	7 mm				161 lm/W	Cool White	125 °	5700 K			0.9 °C/W	2.4 A 4.8 A	1.05 A	0.171 in	4.35 mm	2-SMD
Cree LED XHP70B-00-0000-0D0BP450E	11.2 V	1.05 A	2033 lm	70	0.3 °C/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	2828	4.48 mm	0.176 "	183 lm/W	Cool White	125 °	5000 K									5-Step MacAdam Ellipse	1965lm ~ 2100lm
Cree LED XHP70B-00-0000-0D0UK435G	6 V 12 V	2.1 A	1335 lm	90		Surface Mount	7 mm	0.276 in	0.276 "	7 mm				114 lm/W	Warm White	125 °	3500 K	1290 lm	1380 lm	0.9 °C/W	2.4 A 4.8 A	1.05 A	0.171 in	4.35 mm	2-SMD
Cree LED XHP70B-00-0000-0D0UM40E5	11.2 V	1.05 A	1538 lm	90	0.3 °C/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	2828	4.48 mm	0.176 "	131 lm/W	Neutral White	125 °	4000 K	1485 lm	1590 lm
Cree LED XHP70B-00-0000-0D0HN40E2	11.2 V	1.05 A	1770 lm	80	0.3 °C/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	2828	4.48 mm	0.176 "	151 lm/W	Cool White	125 °	5700 K
Cree LED XHP70B-00-0000-0D0UK427H	11.2 V	1.05 A	1335 lm	90	0.3 °C/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	2828	4.48 mm	0.176 "	114 lm/W	Warm White	125 °	2700 K	1290 lm	1380 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.08
		10	$ 9.58
		50	$ 9.30
		100	$ 8.57
		200	$ 7.79
		500	$ 7.30
	Digi-Reel®	1	$ 10.08
		10	$ 9.58
		50	$ 9.30
		100	$ 8.57
		200	$ 7.79
		500	$ 7.30
	Tape & Reel (TR)	1000	$ 6.72

Description

General part information

XHP70B Series

LED Lighting XLamp® XHP70.2 White, Cool 5700K 6V, 12V 2.1A, 1.05A 125° 2828 (7070 Metric)
