FMX-4202S

Sanken Electric USA Inc.

DIODE ARRAY GP 200V 20A TO-3PF

Search across all available documentation for this part.

Sanken Electric USA Inc.

DIODE ARRAY GP 200V 20A TO-3PF

Technical Specifications

Parameters and characteristics for this part

Specification	FMX-4202S

Current - Average Rectified (Io) (per Diode)	20 A
Current - Reverse Leakage @ Vr	200 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C

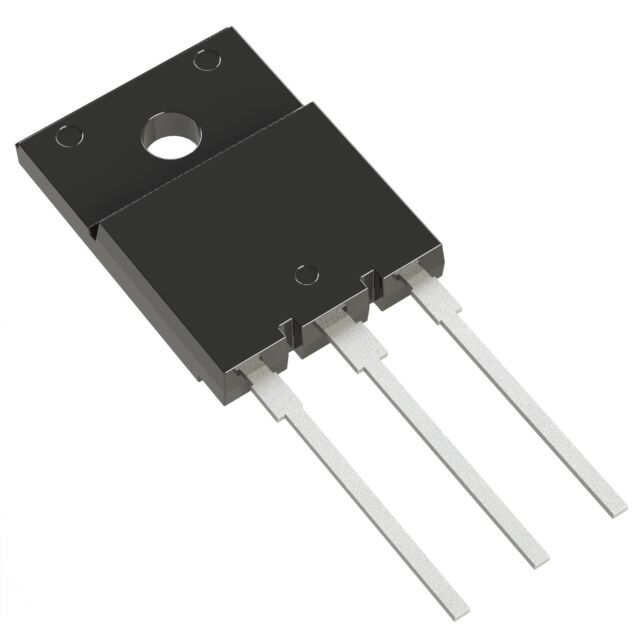

Package / Case	TO-3P-3 Full Pack
Reverse Recovery Time (trr)	30 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-3PF
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	980 mV

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Package / Case	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Technology	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Average Rectified (Io) (per Diode)
Sanken Electric USA Inc. FMX-4202S	150 °C	-40 °C	30 ns	TO-3P-3 Full Pack	200 µA	200 V	1 Pair Common Cathode	Standard	200 mA 500 ns	Through Hole	980 mV	TO-3PF	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.10

General part information

Diode Array 1 Pair Common Cathode 200 V 20A Through Hole TO-3P-3 Full Pack
