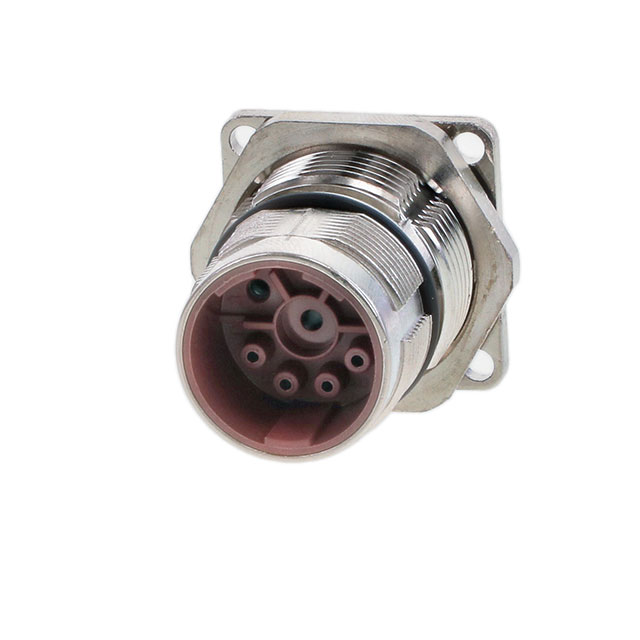

BEGA120NN00000241000

Active

TE Intercontec

CONN RCPT HSG MALE 8POS PNL MNT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 8POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	BEGA120NN00000241000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	8
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-8
Shielding	Unshielded
Type	For Male Pins

Part	Note	Connector Type	Shielding	Insert Material	Shell Material	Type	Contact Shape	Housing Color	Shell Finish	Orientation	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Fastening Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Ingress Protection	Mounting Feature
TE Intercontec BEGA120NN00000241000	Contacts Not Included	Receptacle Housing	Unshielded	Polyamide (PA66) Nylon 6/6	Zinc Die Cast	For Male Pins	Circular	Silver	Nickel	Keyed	UL94 V-0	-20 C	130 °C	M23-8	Push-Twist	3	8	4	PE	IP66/IP67	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
