TR9CZ4730L9PCIMR6LPS
ActiveGlobTek, Inc.

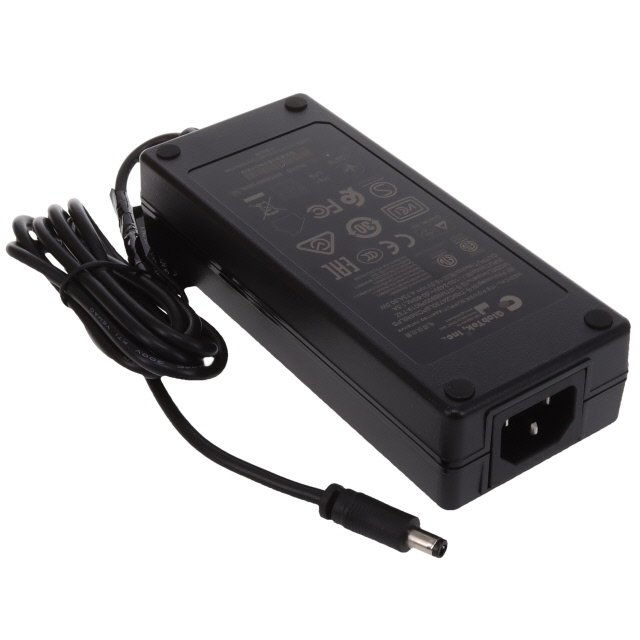

AC/DC DESKTOP ADAPTER 19V 90W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR9CZ4730L9PCIMR6LPS
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 19V 90W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR9CZ4730L9PCIMR6LPS |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 4.73 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 90 W |
| Region Utilized | International |
| Size / Dimension [x] | 149.3 mm |
| Size / Dimension [x] | 5.88 in |
| Size / Dimension [y] | 62.8 mm |
| Size / Dimension [y] | 2.47 in |
| Size / Dimension [z] | 1.34 in |
| Size / Dimension [z] | 34 mm |
| Standard Number | 1310, 60601-1-2, 62368-1, 60335-1, 60601-1-11, 61347-1, 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.80 | |
| 5 | $ 42.05 | |||
| 10 | $ 41.31 | |||
| 25 | $ 40.37 | |||
| 50 | $ 39.66 | |||
| 100 | $ 38.97 | |||
| 250 | $ 38.08 | |||
Description
General part information
TR9CZ4730 Series
19V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Documents
Technical documentation and resources
