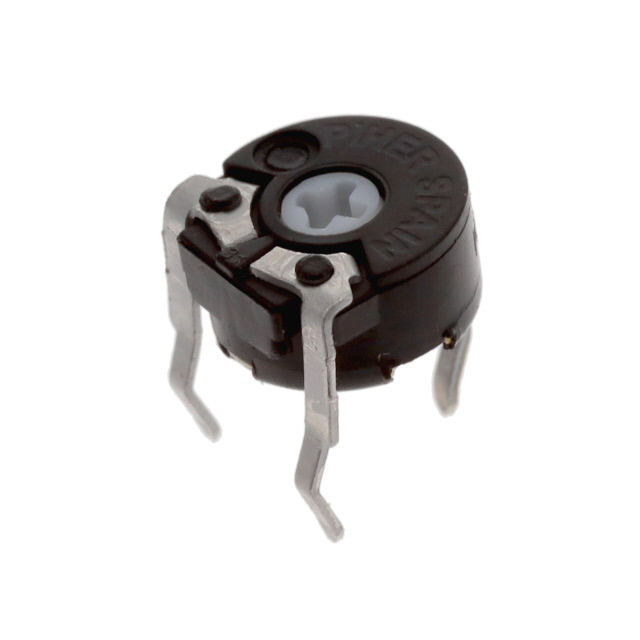

PT6KV-253A2020

Active

Amphenol Piher Sensing Systems

TRIMMER 25K OHM 0.1W PC PIN TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PT6KV-253A2020

Active

Amphenol Piher Sensing Systems

TRIMMER 25K OHM 0.1W PC PIN TOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT6KV-253A2020

Adjustment Type	Top Adjustment
Mounting Type	Through Hole
Number of Turns	1
Power (Watts)	0.1 W
Power (Watts)	0.1 W
Resistance	25 kOhms
Resistive Material	Carbon
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Temperature Coefficient	300 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

PT6KV Series

Part	Tolerance	Power (Watts)	Power (Watts)	Mounting Type	Adjustment Type	Temperature Coefficient	Number of Turns	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination Style	Resistive Material	Resistance
Amphenol Piher Sensing Systems PT6KV-503A2020	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	50 kOhms
Amphenol Piher Sensing Systems PT6KV-501A2020	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	500 Ohms
Amphenol Piher Sensing Systems PT6KV-202A2020	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	2 kOhms
Amphenol Piher Sensing Systems PT6KV-333A2020	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	33 kOhms
Amphenol Piher Sensing Systems PT6KV-252A2020	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	2.5 kOhms
Amphenol Piher Sensing Systems PT6KV-102A2020	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	1000 Ohms
Amphenol Piher Sensing Systems PT6KV-253A2020	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	25 kOhms
Amphenol Piher Sensing Systems PT6KV-103A2020	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	10000 Ohms
Amphenol Piher Sensing Systems PT6KV-103A2020-PM	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	10000 Ohms
Amphenol Piher Sensing Systems PT6KV-474A2020	20 %	0.1 W	0.1 W	Through Hole	Top Adjustment	300 ppm/°C	1	0.248 in	6.3 mm	PC Pins	Carbon	470 kOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.89
		10	$ 0.71
		25	$ 0.65
		50	$ 0.61
		100	$ 0.57
		250	$ 0.52
		500	$ 0.49
		1000	$ 0.46

Description

General part information

PT6KV Series

25 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment

Documents

Technical documentation and resources
