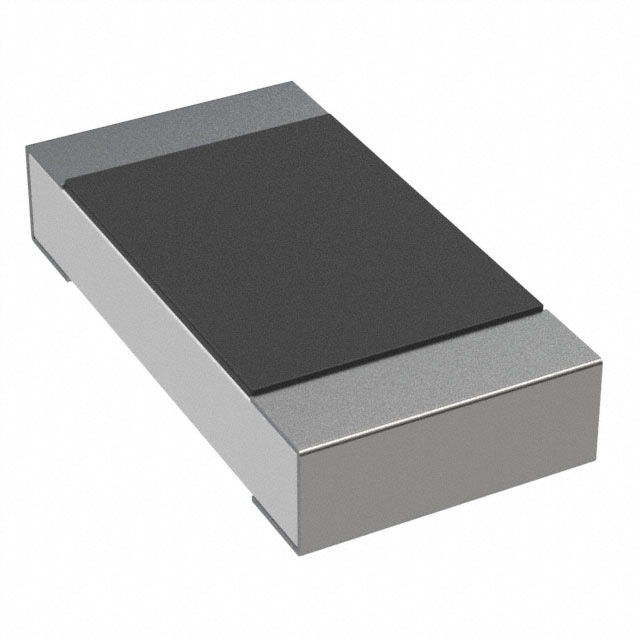

RN73R2ETTD18R7D50

Active

KOA Speer Electronics, Inc.

RESISTOR THIN FILM 1210 SIZE 1%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Passive Components Selection Guide

RN73R2ETTD18R7D50

Active

KOA Speer Electronics, Inc.

RESISTOR THIN FILM 1210 SIZE 1%

Deep-Dive with AI

DocumentsDatasheet Passive Components Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RN73R2ETTD18R7D50

Composition	Thin Film
Features	Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	1210
Package / Case	3225 Metric
Power (Watts)	0.25 W
Power (Watts)	250 mW
Ratings	AEC-Q200
Resistance	18.7 Ohms
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Supplier Device Package	1210
Temperature Coefficient	50 ppm/°C

RN73R2E Series

...

Part	Temperature Coefficient	Resistance	Number of Terminations	Power (Watts)	Power (Watts)	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Package / Case	Package / Case
KOA Speer Electronics, Inc. RN73R2ETTD1262B25	25 ppm/°C	12.6 kOhms	2	0.25 W	250 mW	0.1 %	0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric
KOA Speer Electronics, Inc. RN73R2ETTD4991B25	25 ppm/°C	4.99 kOhms	2	0.25 W	250 mW	0.1 %	0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric
KOA Speer Electronics, Inc. RN73R2ETTD3611F100	100 ppm/°C	3.61 kOhms	2	0.25 W	250 mW	1 %	0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric
KOA Speer Electronics, Inc. RN73R2ETTD5172A25	25 ppm/°C	51.7 kOhms	2	0.25 W	250 mW	0.05 %	0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric
KOA Speer Electronics, Inc. RN73R2ETTD18R7D50	50 ppm/°C	18.7 Ohms	2	0.25 W	250 mW		0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric
KOA Speer Electronics, Inc. RN73R2ETTD1671D100	100 ppm/°C	1.67 kOhms	2	0.25 W	250 mW		0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric
KOA Speer Electronics, Inc. RN73R2ETTD82R5D100	100 ppm/°C	82.5 Ohms	2	0.5 W	0.5 W		0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric
KOA Speer Electronics, Inc. RN73R2ETTD3300F25	25 ppm/°C	330 Ohms	2	0.25 W	250 mW	1 %	0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric
KOA Speer Electronics, Inc. RN73R2ETTD6900D100	100 ppm/°C	690 Ohms	2	0.5 W	0.5 W		0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric
KOA Speer Electronics, Inc. RN73R2ETTD7591D10	10 ppm/°C	7.59 kOhms	2	0.25 W	250 mW		0.7 mm	0.028 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Automotive AEC-Q200 Moisture Resistant	1210	155 °C	-55 °C	Thin Film	1210	3225 Metric

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.16

Description

General part information

RN73R2E Series

18.7 Ohms ±0.5% 0.25W, 1/4W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200, Moisture Resistant Thin Film
