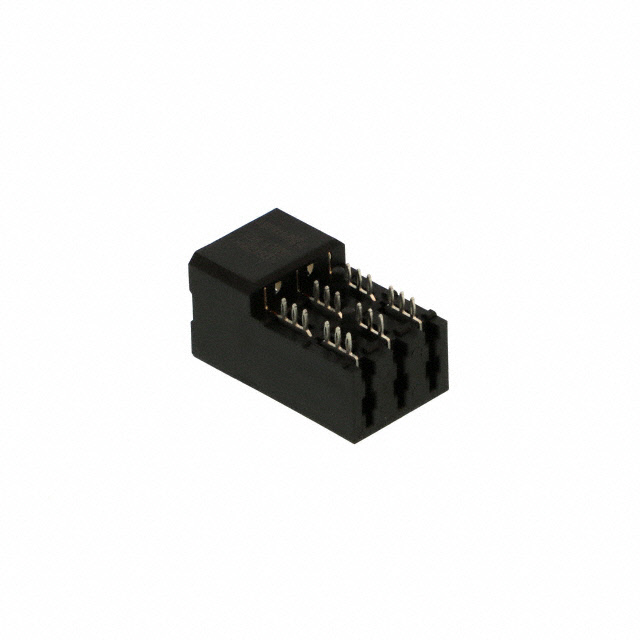

10061289-001LF

Active

Amphenol ICC (FCI)

CONN HEADER POWER 6POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER POWER 6POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10061289-001LF

Color	Black
Connector Style	Power
Connector Type	Header, Male Pins
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	6 Power
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	3
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Termination	Press-Fit

Part	Mounting Type	Material Flammability Rating	Number of Positions	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Color	Contact Layout, Typical	Connector Style	Number of Positions Loaded	Contact Finish	Connector Type	Number of Columns
Amphenol ICC (FCI) 10061289-001LF	Through Hole	UL94 V-0	6	Press-Fit	0.76 Ám	30 Áin	2	Black	6 Power	Power	All	Gold or Gold GXT™	Header Male Pins	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Connector Header, Male Pins Through Hole Black Power

Technical documentation and resources
