MA7RAE1201S-KIT
ActiveAmphenol Sine Systems Corp

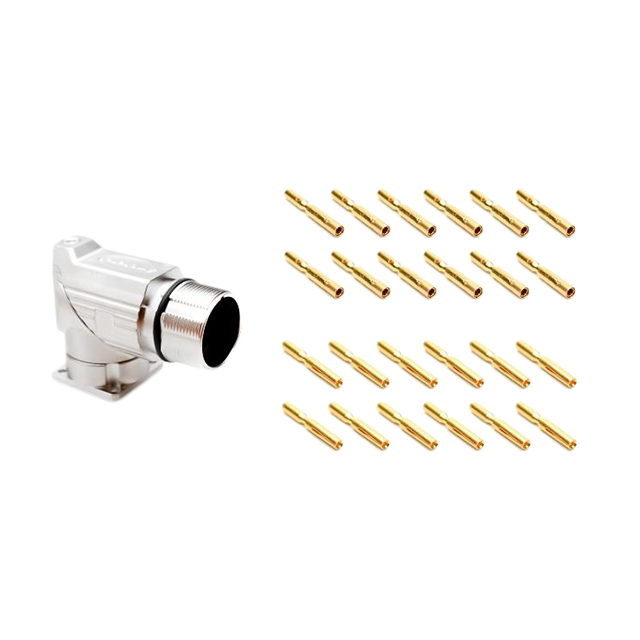

CONN RCPT FMALE 12POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
MA7RAE1201S-KIT
ActiveAmphenol Sine Systems Corp
CONN RCPT FMALE 12POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MA7RAE1201S-KIT |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 10 A |
| Features | Backshell, Rotatable |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Flange |
| Mounting Type | Right Angle, Panel Mount |
| Number of Positions | 12 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | E |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M23-12 |
| Termination | Crimp |
| Voltage Rating | 160 V |
MA7RAE Series
| Part | Orientation | Insert Material | Shell Finish | Mounting Feature | Ingress Protection | Shielding | Features | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Type | Contact Shape | Note | Shell Size - Insert | Housing Color | Material Flammability Rating | Contact Type | Connector Type | Contact Size | Shell Material | Number of Positions | Fastening Type | Number of Positions | Current Rating (Amps) | Voltage Rating | Primary Material | Termination | Color | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | N | Polyamide (PA66) Nylon 6/6 | Nickel | Flange | IP67 - Dust Tight Waterproof | Shielded | Backshell Rotatable | Panel Mount Right Angle | -20 C | 130 °C | For Female Sockets or Male Pins | Circular | Contacts Not Included | M23-17 | Silver | UL94 V-0 | Crimp | Receptacle Housing | 1 mm | Zinc Die Cast | |||||||||
Amphenol Sine Systems Corp | E | Polyamide (PA66) Nylon 6/6 | Nickel | Flange | IP67 - Dust Tight Waterproof | Shielded | Backshell Rotatable | Panel Mount Right Angle | -20 C | 130 °C | For Female Sockets or Male Pins | Circular | Contacts Not Included | M23-12 | Silver | UL94 V-0 | Crimp | Receptacle Housing | 1 mm | Zinc Die Cast | 12 | Push-Twist | |||||||
Amphenol Sine Systems Corp | E | Polyamide (PA66) Nylon 6/6 | Nickel | Flange | IP67 - Dust Tight Waterproof | Shielded | Backshell Rotatable | Panel Mount Right Angle | -20 C | 130 °C | For Female Sockets or Male Pins | Circular | Contacts Not Included | M23-16 | Silver | UL94 V-0 | Crimp | Receptacle Housing | 1 mm | Zinc Die Cast | 16 | ||||||||
Amphenol Sine Systems Corp | E | Nickel | Flange | IP67 - Dust Tight Waterproof | Backshell Rotatable | Panel Mount Right Angle | -20 C | 130 °C | M23-12 | Male Pins Receptacle | Zinc Die Cast | 12 | 10 A | 160 V | Metal | Crimp | Silver | Gold | |||||||||||
Amphenol Sine Systems Corp | E | Nickel | Flange | IP67 - Dust Tight Waterproof | Backshell Rotatable | Panel Mount Right Angle | -20 C | 130 °C | M23-16 | Receptacle Female Sockets | Zinc Die Cast | 16 | 9 A | 125 VAC | Metal | Crimp | Silver | Gold | |||||||||||
Amphenol Sine Systems Corp | E | Nickel | Flange | IP67 - Dust Tight Waterproof | Backshell Rotatable | Panel Mount Right Angle | -20 C | 130 °C | M23-12 | Receptacle Female Sockets | Zinc Die Cast | 12 | 10 A | 160 V | Metal | Crimp | Silver | Gold | |||||||||||
Amphenol Sine Systems Corp | N | Nickel | Flange | IP67 - Dust Tight Waterproof | Backshell Rotatable | Panel Mount Right Angle | -20 C | 130 °C | M23-17 | Receptacle Female Sockets | Zinc Die Cast | 9 A | 125 VAC | Metal | Crimp | Silver | Gold | ||||||||||||
Amphenol Sine Systems Corp | N | Nickel | Flange | IP67 - Dust Tight Waterproof | Backshell Rotatable | Panel Mount Right Angle | -20 C | 130 °C | M23-17 | Male Pins Receptacle | Zinc Die Cast | 9 A | 125 VAC | Metal | Crimp | Silver | Gold | ||||||||||||
Amphenol Sine Systems Corp | E | Polyamide (PA66) Nylon 6/6 | Nickel | Flange | IP67 - Dust Tight Waterproof | Shielded | Backshell Rotatable | Panel Mount Right Angle | -20 C | 130 °C | For Female Sockets or Male Pins | Circular | Contacts Not Included | M23-12 | Silver | UL94 V-0 | Crimp | Receptacle Housing | 1 mm | Zinc Die Cast | 12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.33 | |
| 10 | $ 14.59 | |||
Description
General part information
MA7RAE Series
12 Position Circular Connector Receptacle, Female Sockets Crimp
