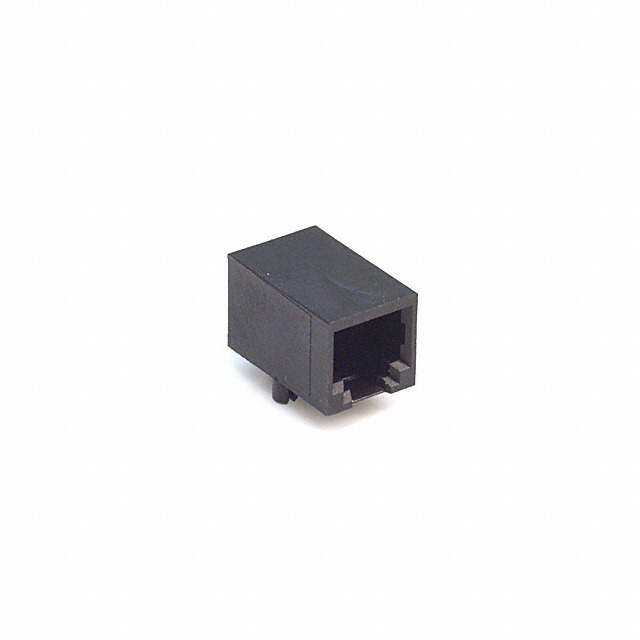

SS-6446-NF

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 6P4C R/A UNSHLD

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 6P4C R/A UNSHLD

Technical Specifications

Parameters and characteristics for this part

Specification	SS-6446-NF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p4c
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Orientation	Number of Positions/Contacts	Housing Material	LED Color	Number of Ports	Contact Material	Number of Rows	Termination	Tab Direction	Shielding	Connector Type
BEL MAGNETIC SOLUTIONS SS-6446-NF	Gold	0.76 Ám	30 Áin	85 °C	-40 °C	Through Hole	90 °	6p4c	Thermoplastic	Does Not Contain LED	1	Copper Alloy	1	Solder	Down	Unshielded	Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 6p4c (RJ11, RJ14) 90° Angle (Right) Unshielded

Technical documentation and resources

No documents available
