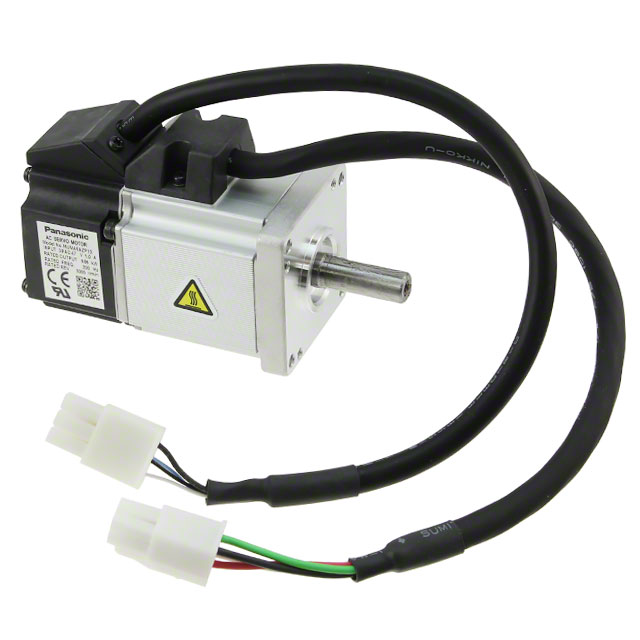

MUMA5AZP1S
LTBPanasonic Industrial Automation Sales
SERVOMOTOR 3000 RPM 100/200V
Deep-Dive with AI
Search across all available documentation for this part.
MUMA5AZP1S
LTBPanasonic Industrial Automation Sales
SERVOMOTOR 3000 RPM 100/200V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MUMA5AZP1S |
|---|---|
| Approval Agency | TUV, CE, CSA, UL, cULus |
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Encoder Type | Incremental |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing [x] | 24 mm |
| Length - Shaft and Bearing [x] | 0.945 in |
| Mounting Hole Spacing | 1.89 " |
| Mounting Hole Spacing | 48 mm |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power - Rated | 50 W |
| RPM | 3000 RPM |
| Size / Dimension [x] | 42 mm |
| Size / Dimension [x] | 1.654 in |
| Size / Dimension [y] | 1.654 " |
| Size / Dimension [y] | 42 mm |
| Termination Style | Cable with Connector |
| Torque - Max Momentary (oz-in / mNm) | 67.97 oz-in |
| Torque - Max Momentary (oz-in / mNm) | 480 mNm |
| Torque - Rated (oz-in / mNm) | 22.7 oz-in |
| Torque - Rated (oz-in / mNm) | 160 mNm |
| Type | AC Motor |
| Voltage - Rated | 200 VAC, 100 VAC |
| Weight | 0.88 lb |
| Weight | 399.16 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 281.08 | |
| 5 | $ 258.32 | |||
| 10 | $ 250.36 | |||
Description
General part information
MUMA5 Series
AC Motor Servomotor 3000 RPM 50W Incremental 100, 200VAC
Documents
Technical documentation and resources
No documents available
