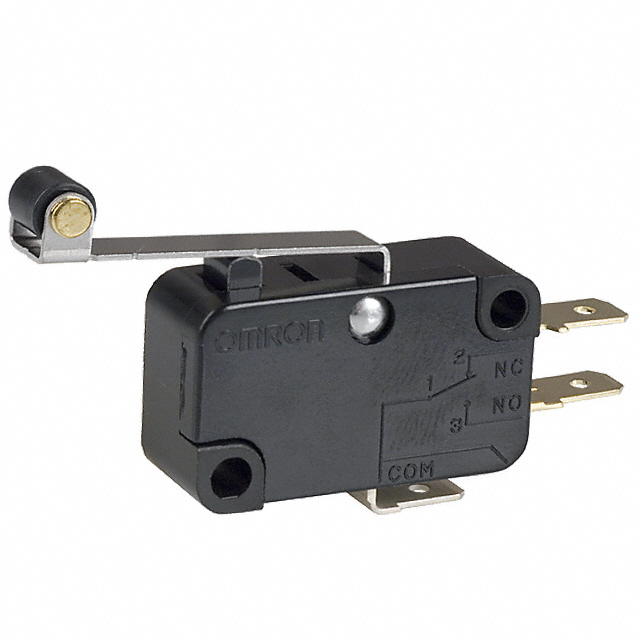

V-166-1C6
ActiveOmron Electronics Inc-EMC Div
BASIC / SNAP ACTION SWITCHES MINIATURE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V-166-1C6
ActiveOmron Electronics Inc-EMC Div
BASIC / SNAP ACTION SWITCHES MINIATURE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V-166-1C6 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA, 16 A |
| Differential Travel | 0.016 " |
| Differential Travel | 0.4 mm |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 50000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 400 gf |
| Operating Position | 0.579 in |
| Operating Position | 14.7 mm |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.039 in |
| Overtravel | 1 mm |
| Pretravel | 0.047 in |
| Pretravel | 1.2 mm |
| Release Force | 80 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.52 | |
| 10 | $ 3.61 | |||
| 25 | $ 3.43 | |||
| 50 | $ 3.34 | |||
| 100 | $ 3.18 | |||
Description
General part information
V-166 Series
Switch SPDT Chassis Mount
