WLB32C570Q

Active

BANNER ENGINEERING

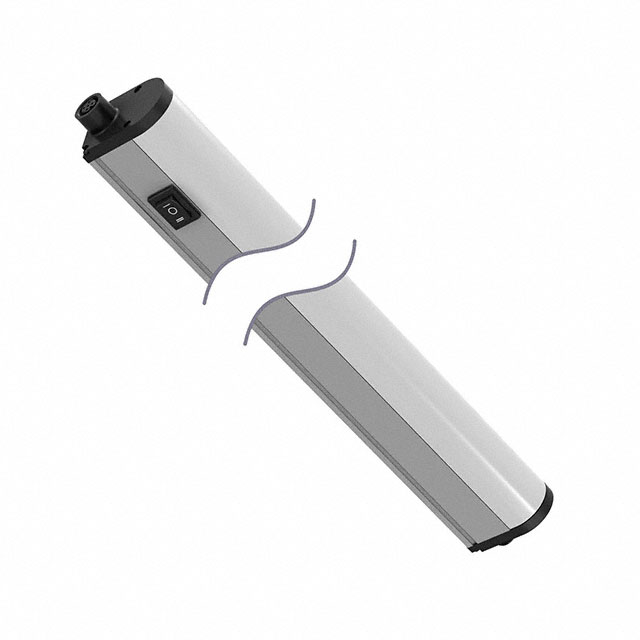

LED WORK LIGHT, 602MM, 30V, 4PIN M12 QD

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LED WORK LIGHT, 602MM, 30V, 4PIN M12 QD

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Housing Material	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Approval Agency	Illumination Color	Lens Type	Length	Length	Rated Life	Luminous Flux	Features
BANNER ENGINEERING WLB32C570Q	Connector (M12)	32 mm	1.81 in	1.26 in	46 mm	Aluminum (Al)	12 V	30 VDC	-40 °C	70 °C	IP50	CE cULus	Cool White	Diffused Tubular	570 mm	22.44 in	50000 Hours	1500 lm
BANNER ENGINEERING WLB32C570PBQ	Connector (M12)	32 mm	1.81 in	1.26 in	46 mm	Aluminum (Al)	12 V	30 VDC	-40 °C	70 °C	IP50	CE cULus	Cool White	Diffused Tubular	570 mm	22.44 in	50000 Hours	1500 lm	High/Low/Off Switching
BANNER ENGINEERING WLB32C570MQ	Connector (M12)	32 mm	1.81 in	1.26 in	46 mm	Aluminum (Al)	12 V	30 VDC	-40 °C	70 °C	IP50	CE cULus	Cool White	Diffused Tubular	570 mm	22.44 in	50000 Hours	1500 lm	Motion Detection
BANNER ENGINEERING WLB32C570EPBQ	Connector (M12)	32 mm	1.89 in	1.26 in	48 mm	Aluminum (Al)	12 V	30 VDC	-40 °C	70 °C	IP50	CE cULus	Cool White	Diffused Tubular	570 mm	22.44 in	50000 Hours	1500 lm	High/Low/Off Switching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED WORK LIGHT, 602MM, 30V, 4PIN M12 QD

Technical documentation and resources
