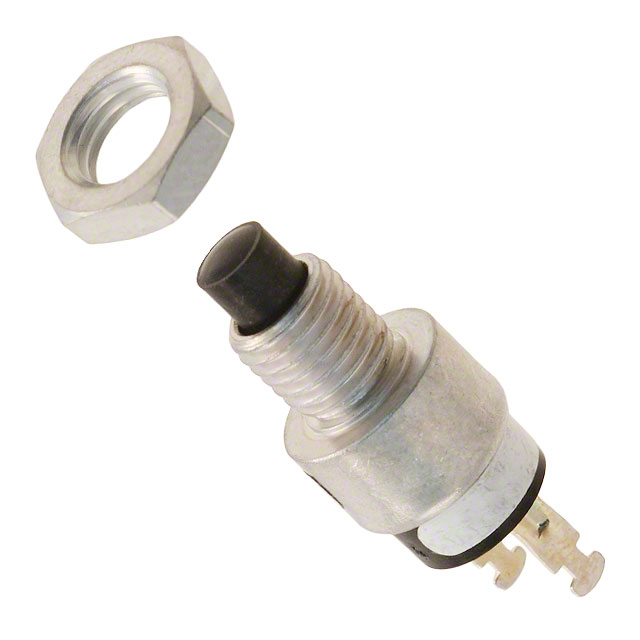

30-2UL
ActiveGrayhill Inc.
SWITCH PUSH SPST-NC 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
30-2UL
ActiveGrayhill Inc.
SWITCH PUSH SPST-NC 5A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-2UL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NC |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 5 A |
| Electrical Life | 6000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 6.75 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.09 | |
| 10 | $ 7.27 | |||
| 25 | $ 6.93 | |||
| 50 | $ 6.63 | |||
| 100 | $ 6.37 | |||
| 250 | $ 6.04 | |||
| 500 | $ 5.59 | |||
| 1000 | $ 5.33 | |||
Description
General part information
30-2 Series
Pushbutton Switch SPST-NC Standard Panel Mount, Rear
