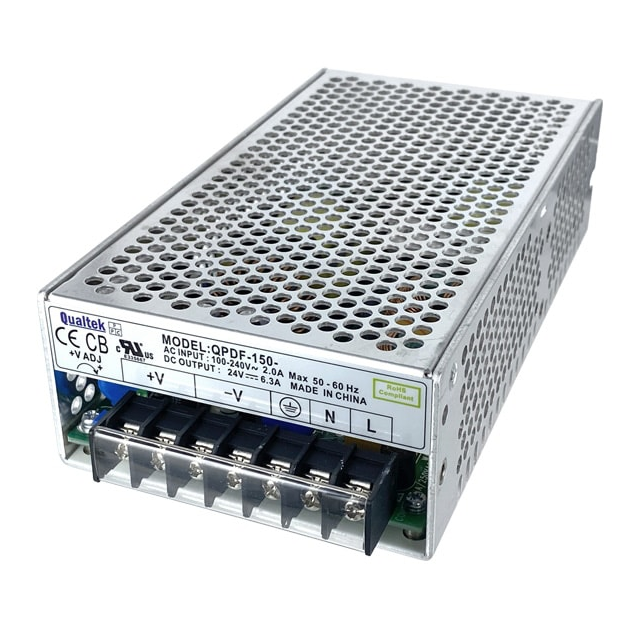

QPDF-150-24

Active

Qualtek

AC/DC CONVERTER 24V 150W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 24V 150W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Power (Watts)	Current - Output 1	Efficiency	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Number of Outputs	Type	Voltage - Input [Min]	Voltage - Input [Max]
Qualtek QPDF-150-15	15 V	150 W	10 A	86 %	Chassis Mount	ITE (Commercial)	-25 °C	70 °C	3000 V	194 mm	3.9 in	99 mm	50 mm	7.64 in	1.97 "	CB CE cURus	1	Enclosed
Qualtek QPDF-150-36	36 V	150 W	4.1 A	86 %	Chassis Mount	ITE (Commercial)	-25 °C	70 °C	3000 V							CB CE cURus	1	Enclosed	90 VAC	264 VAC
Qualtek QPDF-150-48	48 V	150 W	3.2 A	87 %	Chassis Mount	ITE (Commercial)	-25 °C	70 °C	3000 V	194 mm	3.9 in	99 mm	50 mm	7.64 in	1.97 "	CB CE cURus	1	Enclosed
Qualtek QPDF-150-24	24 V	150 W	6.3 A	86 %	Chassis Mount	ITE (Commercial)	-25 °C	70 °C	3000 V	194 mm	3.9 in	99 mm	50 mm	7.64 in	1.97 "	CB CE cURus	1	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Technical documentation and resources
