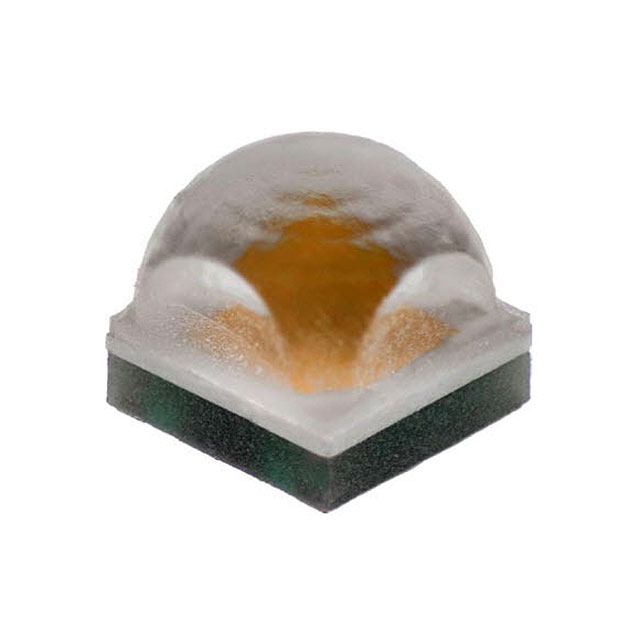

XBHAWT-00-0000-000LT6053

Active

Cree LED

LED XLAMP COOL WHITE 5700K SMD

Deep-Dive with AI

DocumentsDatasheet XB Family LEDs Binning & Labeling ~

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XBHAWT-00-0000-000LT6053

CCT (K)	5700 K
Color	Cool, White
CRI (Color Rendering Index)	75
Current - Max [Max]	1.5 A
Flux @ 85°C, Current - Test	290 lm
Flux @ 85°C, Current - Test [Max]	300 lm
Flux @ 85°C, Current - Test [Min]	280 lm
Height - Seated (Max) [Max]	2.41 mm
Height - Seated (Max) [Max] [z]	0.095 in
Lumens/Watt @ Current - Test	143 lm/W
Mounting Type	Surface Mount
Package / Case	1010 (2525 Metric)
Size / Dimension [x]	2.45 mm
Size / Dimension [x]	0.096 "
Size / Dimension [y]	0.096 in
Size / Dimension [y]	2.45 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	4 °C/W
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	2.86 V

XBHAWT Series

...

Part	Current - Max [Max]	Package / Case	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [custom]	CCT (K)	Supplier Device Package	Lumens/Watt @ Current - Test	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	CRI (Color Rendering Index)	Flux @ 85°C, Current - Test
Cree LED XBHAWT-00-0000-0000T30C5	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W	3800 K	SMD	113 lm/W	220 lm	240 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Warm White
Cree LED XBHAWT-00-0000-000LT20F6	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W	3700 K	SMD	103 lm/W	200 lm	220 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Warm White	80	210 lm
Cree LED XBHAWT-00-0000-000LT6053	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W	5700 K	SMD	143 lm/W	280 lm	300 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Cool White	75	290 lm
Cree LED XBHAWT-02-0000-0000T30F7	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W	3200 K	SMD	113 lm/W	220 lm	240 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Warm White
Cree LED XBHAWT-00-0000-0000T30C3	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W		SMD	113 lm/W	220 lm	240 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Neutral White
Cree LED XBHAWT-02-0000-0000T30F4	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W	4750 K	SMD	113 lm/W	220 lm	240 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Neutral White
Cree LED XBHAWT-00-0000-000HT30F7	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W	3200 K	SMD	113 lm/W	220 lm	240 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Warm White	80
Cree LED XBHAWT-00-0000-0000T20E6	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W	3500 K	SMD	103 lm/W	200 lm	220 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Warm White		210 lm
Cree LED XBHAWT-00-0000-0000T30F4	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W	4750 K	SMD	113 lm/W	220 lm	240 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Neutral White
Cree LED XBHAWT-00-0000-0000T50C2	1.5 A	1010 (2525 Metric)	Surface Mount	0.095 in	2.41 mm	2.86 V	4 °C/W	4750 K	SMD	133 lm/W	260 lm	280 lm	110 °	2.45 mm	0.096 in	2.45 mm	0.096 "	Neutral White		270 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.44

Description

General part information

XBHAWT Series

LED Lighting XLamp® XB-H White, Cool 5700K 2.86V 700mA 110° 1010 (2525 Metric)
