3182-3SG-3DC

Active

Conxall/Switchcraft

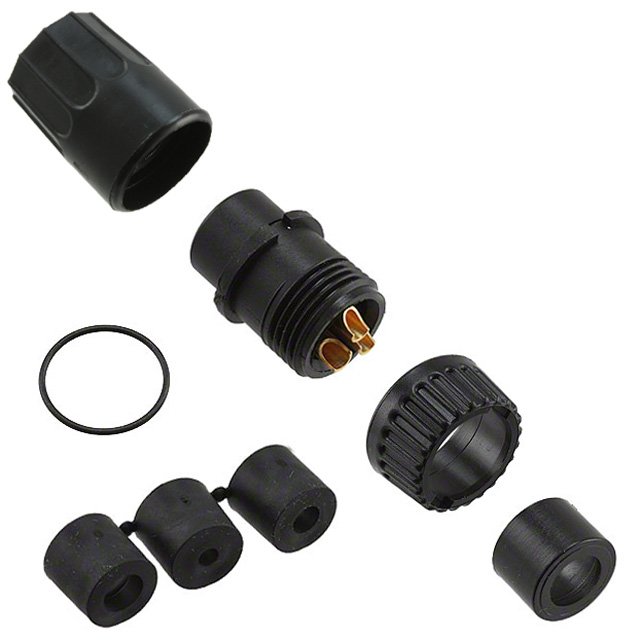

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3182-3SG-3DC

Active

Conxall/Switchcraft

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3182-3SG-3DC

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3182-3S Series

Part	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Mounting Type	Contact Finish - Mating	Contact Material	Shielding	Color	Primary Material	Orientation	Voltage Rating	Features	Backshell Material, Plating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3182-3SG-328	7.37 mm	7.11 mm	0.29 in	0.28 in	Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell	Nylon Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets Plug	Bayonet Lock
Conxall/Switchcraft 3182-3SG-518					Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell Cable Clamp	Nylon Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets Plug	Bayonet Lock	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3182-3SG-3XX
Conxall/Switchcraft 3182-3SG-330		7.62 mm	0.32 in	0.3 in	Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell	Nylon Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets Plug	Bayonet Lock					8.13 mm
Conxall/Switchcraft 3182-3SG-3DC					Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell	Nylon Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets Plug	Bayonet Lock
Conxall/Switchcraft 3182-3SG-515					Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell Cable Clamp	Nylon Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets Plug	Bayonet Lock						0.15 in 0.17 in	3.81 mm 4.32 mm
