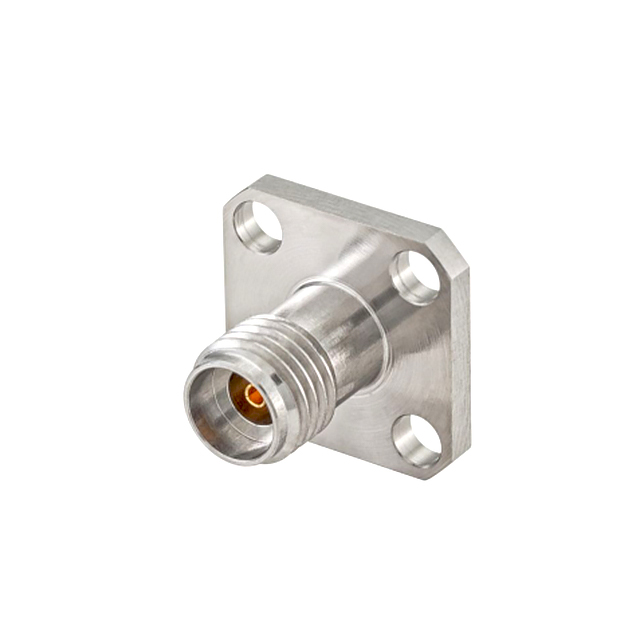

02K421-800S3
ActiveRosenberger
RF CONNECTOR, FEMALE, JACK, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02K421-800S3
ActiveRosenberger
RF CONNECTOR, FEMALE, JACK, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02K421-800S3 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 2.92 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polystyrene (PS) |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 45.40 | |
| 10 | $ 39.76 | |||
| 30 | $ 38.04 | |||
| 50 | $ 36.81 | |||
| 100 | $ 35.59 | |||
| 250 | $ 33.62 | |||
Description
General part information
02K421 Series
2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount Solder
