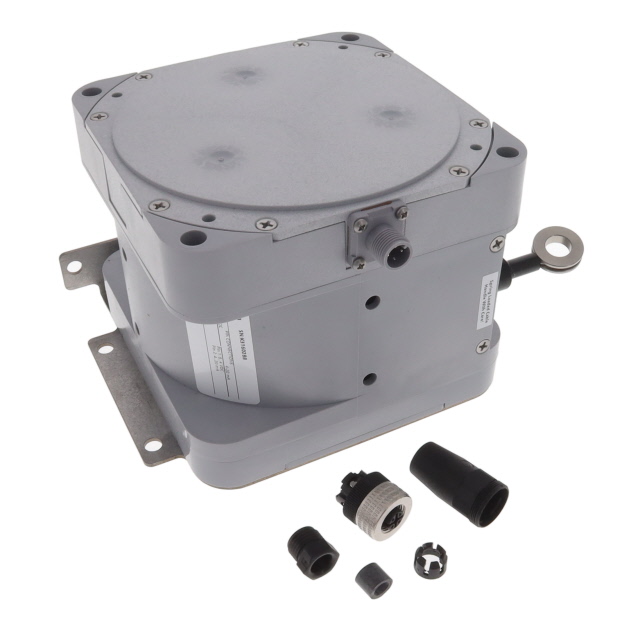

SKD-250-3
ActiveTE Connectivity Measurement Specialties
250 IN 0-10V / 4-20MA IP67 STRIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKD-250-3 |
|---|---|
| Actuator Type | String Potentiometer |
| For Measuring | Linear Position |
| Linear Range [Max] | 250 in |
| Linear Range [Max] | 6350 mm |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 |
| Package / Case | Module |
| Technology | Resistive |
| Termination Style | Connector |
| Voltage - Supply [Max] | 40 VDC, 32 VDC |
| Voltage - Supply [Min] | 12 V, 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 990.36 | |
Description
General part information
SKD Series
Resistive Sensor Linear Position String Potentiometer Connector
