0314030.MX52LP

Active

Littelfuse/Commercial Vehicle Products

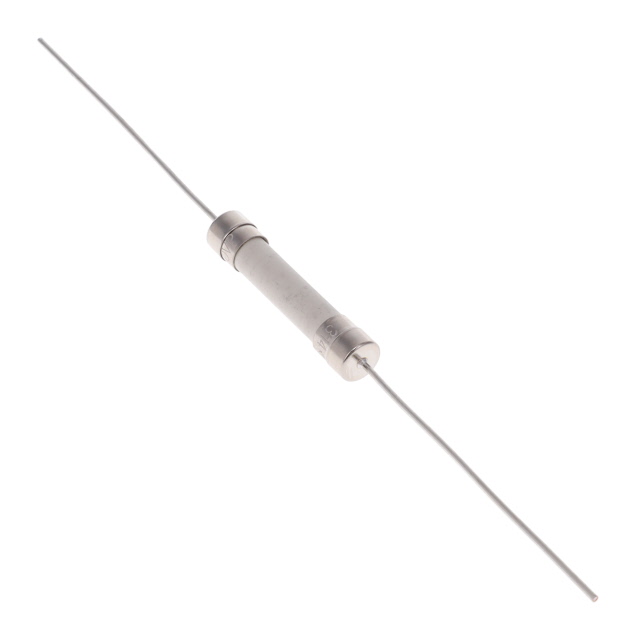

FUSE 250V FA 3AB 50MM LEAD ROHS 30A/ BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet UL_NBK260106_JP1021A +4

0314030.MX52LP

Active

Littelfuse/Commercial Vehicle Products

FUSE 250V FA 3AB 50MM LEAD ROHS 30A/ BULK

Deep-Dive with AI

DocumentsDatasheet UL_NBK260106_JP1021A +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0314030.MX52LP

Approval Agency	KC, METI, UL, CE
Breaking Capacity @ Rated Voltage	100 A
Current Rating (Amps)	30 A
DC Cold Resistance	0.00182 Ohms
Fuse Type	Cartridge, Ceramic
Melting I˛t	2490
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	3AB, 3AG
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Fast Blow
Size / Dimension [diameter]	0.25 in
Size / Dimension [diameter]	6.35 mm
Size / Dimension [x]	31.75 mm
Size / Dimension [x]	1.25 "
Voltage Rating - AC	250 V

0314030 Series

FUSE 250V FA 3AB ROHS 30A

Part	Current Rating (Amps)	Approval Agency	Mounting Type	DC Cold Resistance	Fuse Type	Package / Case	Package / Case [y]	Package / Case [x]	Breaking Capacity @ Rated Voltage	Melting I²t	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Response Time	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Melting I˛t
Littelfuse/Commercial Vehicle Products 0314030.MXP	30 A	CE K-Mark PSE UL	Requires Holder	0.00182 Ohms	Cartridge Ceramic	3AB 3AG	1-1/4	1/4	100 A 400 A	2490	125 VDC	31.75 mm	0.25 in	6.35 mm	1.25 "	Fast Blow	250 V	-55 °C	125 °C
Littelfuse/Commercial Vehicle Products 0314030.VXP	30 A	CE KC PSE UL	Requires Holder	0.00182 Ohms	Cartridge Ceramic	3AB 3AG	1-1/4	1/4	100 A 400 A		150 V	31.75 mm	0.25 in	6.35 mm	1.25 "	Fast Blow	250 V	-55 °C	125 °C	2490
Littelfuse/Commercial Vehicle Products 0314030.MX52LP	30 A	CE KC METI UL	Requires Holder	0.00182 Ohms	Cartridge Ceramic	3AB 3AG	1-1/4	1/4	100 A			31.75 mm	0.25 in	6.35 mm	1.25 "	Fast Blow	250 V	-55 °C	125 °C	2490
Littelfuse/Commercial Vehicle Products 0314030.HXP	30 A	CE K-Mark PSE UL	Requires Holder	0.00182 Ohms	Cartridge Ceramic	3AB 3AG	1-1/4	1/4	100 A 400 A	2490	125 VDC	31.75 mm	0.25 in	6.35 mm	1.25 "	Fast Blow	250 V	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.50
		5	$ 1.42
		10	$ 1.35
		50	$ 1.09
		100	$ 0.93
		250	$ 0.90
		500	$ 0.84
Newark	Each	1000	$ 1.11
		2500	$ 0.99

Description

General part information

0314030 Series

The 3AB Fast-Acting Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
