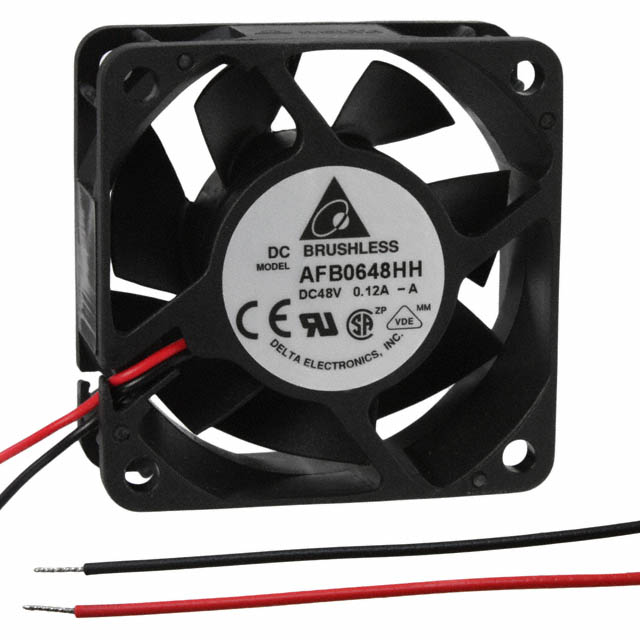

AFB0648HH-A

Active

Delta Electronics

FAN AXIAL 60X25.4MM 48VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 60X25.4MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	RPM	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Noise	Size / Dimension [x]	Size / Dimension [y]	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Bearing Type	Voltage - Rated [custom]	Weight	Weight	Power (Watts)	Width [y]	Air Flow	Air Flow	Termination	Static Pressure	Static Pressure	Material - Blade	Current Rating (Amps)	Features
Delta Electronics AFB0648HH-A	CE CSA UL VDE	5000 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	40 dB(A)	60 mm	60 mm	28 V	56 VDC	Plastic	Ball	48 VDC	80 g	0.176 lb	3.84 W	25.4 mm	27.5 CFM	0.77 m³/min	2 Wire Leads	73.2 Pa	0.294 in H2O	Plastic
Delta Electronics AFB0648VH-AF00	CE CSA UL VDE	5500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	42.5 dB(A)	60 mm	60 mm	28 V	56 VDC	Plastic	Ball	48 VDC	80 g	0.176 lb	4.32 W	25.4 mm	30.5 CFM	0.854 m³/min	3 Wire Leads	85.9 Pa	0.345 in H2O	Plastic	0.09 A	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0648SH-A	CE CSA UL VDE	6000 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	44.5 dB	60 mm	60 mm	20 VDC	56 VDC	Plastic	Ball	48 VDC	80 g	0.176 lb	5.28 W	25.4 mm	34.2 CFM	0.958 m³/min	2 Wire Leads	105.1 Pa	0.422 in H2O	Plastic	110 mA
Delta Electronics AFB0648EH-ABF00		6800 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	46.5 dB	60 mm	60 mm	20 VDC	56 VDC	Plastic	Ball	48 VDC	80 g	0.176 lb	6.72 W	25.4 mm	38.4 CFM	1.08 m³/min	3 Wire Leads	135.5 Pa	0.544 in H2O	Plastic	140 mA	Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 27.5 CFM (0.770m³/min) 2 Wire Leads
