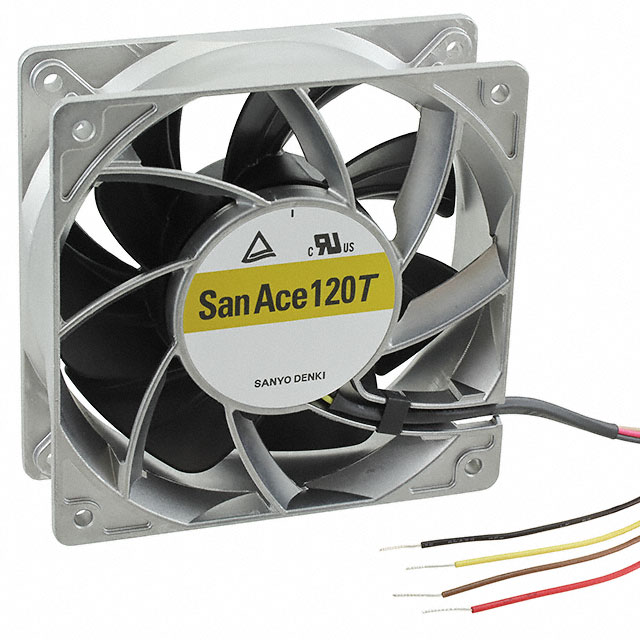

9GT1212P1S001

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9GT1212P1S001

Air Flow	5.93 m³/min
Air Flow	211.8 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	2.2 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	58 dB(A)
Operating Temperature [Max]	85 °C
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	26.4 W
RPM	5600 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	269 Pa
Static Pressure	1.08 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	9 V
Weight	420.03 g
Weight	0.926 lb
Width [y]	38 mm

Part	Width [y]	Air Flow	Air Flow	Current Rating (Amps)	Power (Watts)	Weight	Weight	RPM	Material - Frame	Static Pressure	Static Pressure	Bearing Type	Termination	Voltage - Rated	Material - Blade	Lifetime @ Temp.	Approval Agency	Noise	Features	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]
Sanyo Denki America Inc. 9GT1212P1S001	38 mm	5.93 m³/min	211.8 CFM	2.2 A	26.4 W	420.03 g	0.926 lb	5600 RPM	Aluminum	269 Pa	1.08 in H2O	Ball	4 Wire Leads	12 VDC	Plastic	40000 Hrs	cURus TUV	58 dB(A)	PWM Control Speed Sensor (Tach)	Tubeaxial	13.8 VDC	9 V	-40 °C	-40 °C	85 °C	85 °C	119 mm	119 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 211.8 CFM (5.93mł/min) 4 Wire Leads
