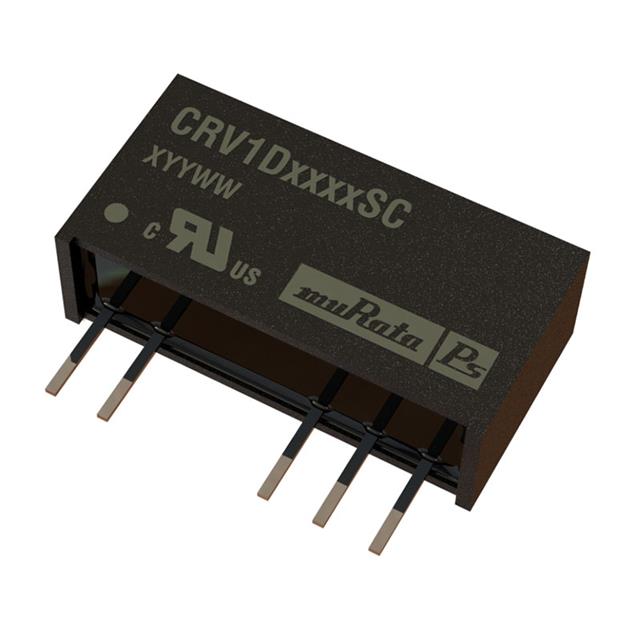

CRV1D0512SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-12V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CRV1D0512SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-12V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CRV1D0512SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 42 mA |
| Current - Output (Max) [Max] | 42 mA |
| Efficiency | 79 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [x] | 0.77 " |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [y] | 0.24 in |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 10 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CRV1D Series
Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
