3260B-12S3(56)

Active

Hirose Electric USA, Inc.

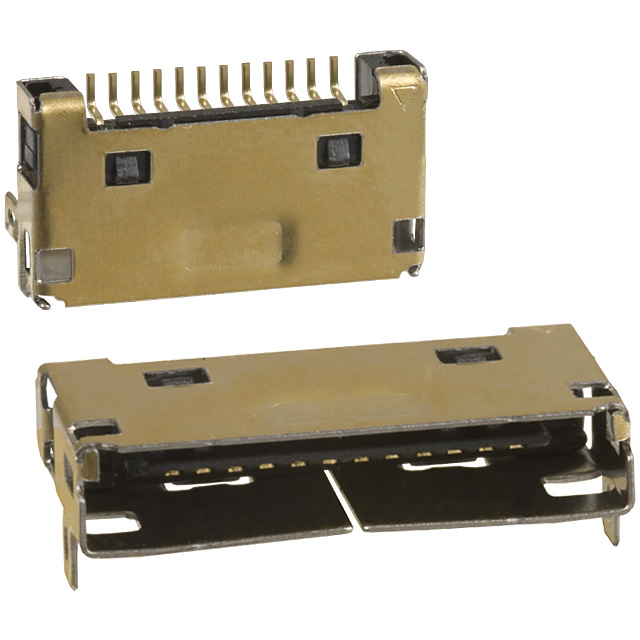

CONN TELEPHONE/TELECOM RCP 12 POS 0.8MM SOLDER ST SMD 12 TERMINAL 1 PORT TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3260B-12S3(56)

Active

Hirose Electric USA, Inc.

CONN TELEPHONE/TELECOM RCP 12 POS 0.8MM SOLDER ST SMD 12 TERMINAL 1 PORT TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3260B-12S3(56)

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1.25 µin
Contact Finish Thickness - Post	0.032 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Center Strip Contact
Current Rating (Amps)	0.5 A
Fastening Type	Latch Holder
Features	Shielded, Board Guide
Insulation Color	Black
Insulation Height	0.114 "
Insulation Height	2.9 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VAC

3260 Series

Part	Style	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Fastening Type	Insulation Color	Contact Material	Contact Shape	Number of Positions	Material Flammability Rating	Termination	Applications	Insulation Material	Voltage Rating	Pitch - Mating	Pitch - Mating	Features	Contact Finish - Post	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Rows	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating
Hirose Electric USA, Inc. 3260-10S2(55)	Board to Cable/Wire	All	0.203 Ám	8 Áin	Surface Mount Right Angle	Latch Holder	Black	Phosphor Bronze	Square	10	UL94 V-0	Solder	General Purpose	Polyphenylene Sulfide (PPS)	125 VAC	0.031 in	0.8 mm	Board Guide Shielded	Gold	Center Strip Contact	1.25 µin	0.032 µm	Receptacle	1	0.5 A	0.114 "	2.9 mm	Gold
Hirose Electric USA, Inc. 3260-8S1	Board to Cable/Wire	All	0.203 Ám	8 Áin	Surface Mount Right Angle	Latch Holder	Black	Phosphor Bronze	Square	8	UL94 V-0	Solder	General Purpose	Polyphenylene Sulfide (PPS)	125 VAC	0.031 in	0.8 mm	Board Guide Shielded	Gold	Center Strip Contact	1.25 µin	0.032 µm	Receptacle	1	0.5 A	0.114 "	2.9 mm	Gold
Hirose Electric USA, Inc. 3260B-12S1(55)	Board to Cable/Wire	All	0.203 Ám	8 Áin	Surface Mount Right Angle	Latch Holder	Black	Phosphor Bronze	Square	12	UL94 V-0	Solder	General Purpose	Polyphenylene Sulfide (PPS)	125 VAC	0.031 in	0.8 mm	Board Guide Shielded	Gold	Center Strip Contact	1.25 µin	0.032 µm	Receptacle	1	0.5 A	0.114 "	2.9 mm	Gold
Hirose Electric USA, Inc. 3260-8S1(56)	Board to Cable/Wire	All	0.203 Ám	8 Áin	Surface Mount Right Angle	Latch Holder	Black	Phosphor Bronze	Square	8	UL94 V-0	Solder	General Purpose	Polyphenylene Sulfide (PPS)	125 VAC	0.031 in	0.8 mm	Board Guide Shielded	Gold	Center Strip Contact	1.25 µin	0.032 µm	Receptacle	1	0.5 A	0.114 "	2.9 mm	Gold
Hirose Electric USA, Inc. 3260-10S3(60)	Board to Cable/Wire	All	0.203 Ám	8 Áin	Surface Mount Right Angle	Latch Holder	Black	Phosphor Bronze	Square	10	UL94 V-0	Solder	General Purpose	Polyphenylene Sulfide (PPS)	125 VAC	0.031 in	0.8 mm	Board Guide Shielded	Gold	Center Strip Contact	1.25 µin	0.032 µm	Receptacle	1	0.5 A	0.114 "	2.9 mm	Gold
Hirose Electric USA, Inc. 3260-10S3(56)	Board to Cable/Wire	All	0.203 Ám	8 Áin	Surface Mount Right Angle	Latch Holder	Black	Phosphor Bronze	Square	10	UL94 V-0	Solder	General Purpose	Polyphenylene Sulfide (PPS)	125 VAC	0.031 in	0.8 mm	Board Guide Shielded	Gold	Center Strip Contact	1.25 µin	0.032 µm	Receptacle	1	0.5 A	0.114 "	2.9 mm	Gold
Hirose Electric USA, Inc. 3260N-16SR(55)	Board to Cable/Wire	All	0.203 Ám	8 Áin	Surface Mount Right Angle	Latch Holder	Black	Phosphor Bronze	Square		UL94 V-0	Solder	General Purpose	Polyphenylene Sulfide (PPS)	125 VAC	0.031 in	0.8 mm	Board Guide Shielded Solder Retention	Gold	Center Strip Contact	1.25 µin	0.032 µm	Receptacle	1	0.5 A	0.114 "	2.9 mm	Gold	16
Hirose Electric USA, Inc. 3260B-12S3(56)	Board to Cable/Wire	All	0.203 Ám	8 Áin	Surface Mount Right Angle	Latch Holder	Black	Phosphor Bronze	Square	12	UL94 V-0	Solder	General Purpose	Polyphenylene Sulfide (PPS)	125 VAC	0.031 in	0.8 mm	Board Guide Shielded	Gold	Center Strip Contact	1.25 µin	0.032 µm	Receptacle	1	0.5 A	0.114 "	2.9 mm	Gold
Hirose Electric USA, Inc. 3260-10S3	Board to Cable/Wire	All	0.203 Ám	8 Áin	Surface Mount Right Angle	Latch Holder	Black	Phosphor Bronze	Square	10	UL94 V-0	Solder	General Purpose	Polyphenylene Sulfide (PPS)	125 VAC	0.031 in	0.8 mm	Board Guide Shielded	Gold	Center Strip Contact	1.25 µin	0.032 µm	Receptacle	1	0.5 A	0.114 "	2.9 mm	Gold
Hirose Electric USA, Inc. 3260-8S3(56)	Board to Board Cable	All	0.203 Ám	8 Áin	Surface Mount	Friction Lock	Beige	Phosphor Bronze	Square	10	UL94 V-0	Solder	General Purpose	Nylon Polyamide (PA)	250 VDC			Pick and Place Solder Retention	Tin	Female Socket	78.7 çin	2 çm	Receptacle	2	2 A	0.234 in	5.95 mm	Gold		0.079 in	2 mm	7.55 mm 8.2 mm	-30 ░C	85 °C	0.079 in	2 mm
