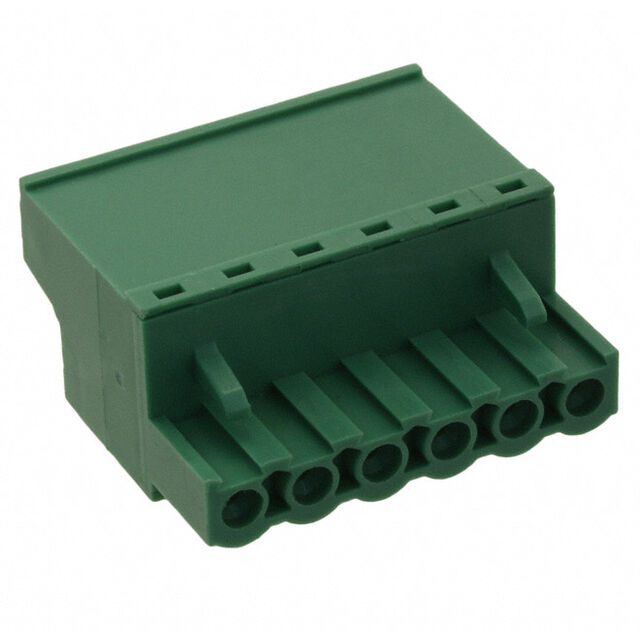

20020013-H061B01LF

Active

Amphenol Anytek

TERM BLOCK PLUG 6POS STR 5.08MM

Search across all available documentation for this part.

Active

Amphenol Anytek

TERM BLOCK PLUG 6POS STR 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	20020013-H061B01LF

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	10 A
Housing Material	Thermoplastic Resin
Insulation Height	1.083 in
Insulation Height	27.51 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	6
Screw Size	M2.5
Termination Style	Screw - Pressure Clip
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²
Wire Strip Length [Max]	7 mm
Wire Strip Length [Min]	6 mm

Part	Pitch [x]	Pitch [x]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Material	Housing Material	Current - UL	Type	Positions Per Level	Insulation Height	Insulation Height	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Strip Length [Max]	Wire Strip Length [Min]	Termination Style	Torque - Screw	Torque - Screw	Mounting Type	Screw Size	Number of Levels	Color	Contact Mating Finish
Amphenol Anytek 20020013-H061B01LF	0.2 in	5.08 mm	12 AWG	22 AWG	Copper Alloy	Thermoplastic Resin	10 A	Plug Female Sockets	6	1.083 in	27.51 mm	300 V	-40 °C	115 °C	6	UL94 V-0	2.5 mm²	1 mm²	7 mm	6 mm	Screw - Pressure Clip	0.4 Nm	3.5 Lb-In	Free Hanging (In-Line)	M2.5	1	Green	Tin
Amphenol Anytek 20020013-H021B01LF	0.2 in	5.08 mm	12 AWG	22 AWG	Copper Alloy	Thermoplastic Resin	10 A	Plug Female Sockets	2	1.083 in	27.51 mm	300 V	-40 °C	115 °C	2	UL94 V-0	2.5 mm²	1 mm²	7 mm	6 mm	Screw - Pressure Clip	0.4 Nm	3.5 Lb-In	Free Hanging (In-Line)	M2.5	1	Green	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1045	$ 1.51

General part information

6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
