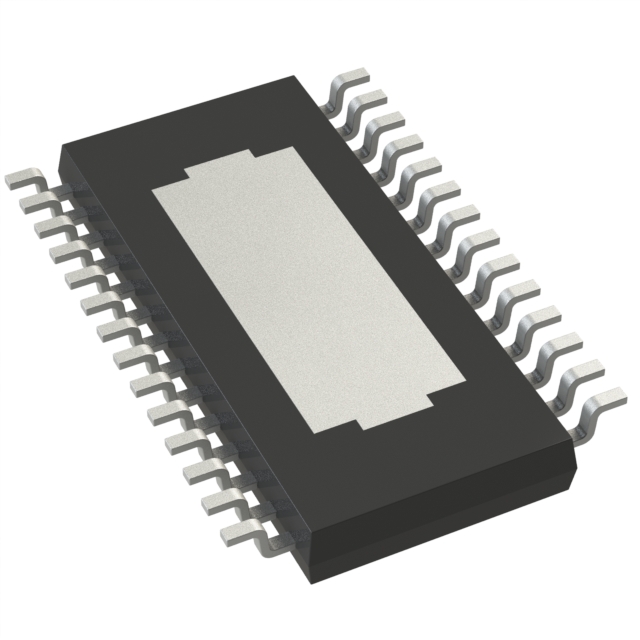

UCC5519PWPG4
ObsoleteTexas Instruments
IC MULT-MODE SCSI TERM 28-TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCC5519PWPG4
ObsoleteTexas Instruments
IC MULT-MODE SCSI TERM 28-TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCC5519PWPG4 |
|---|---|
| Mounting Type | Surface Mount |
| Number of Terminations | 9 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 28-PowerTSSOP |
| Package / Case [custom] | 4.4 mm |
| Package / Case [custom] | 0.173 " |
| Supplier Device Package | 28-HTSSOP |
| Type | SE, LVD, SCSI |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UCC551 Series
SCSI, LVD, SE Terminator 9 Terminations 28-HTSSOP
