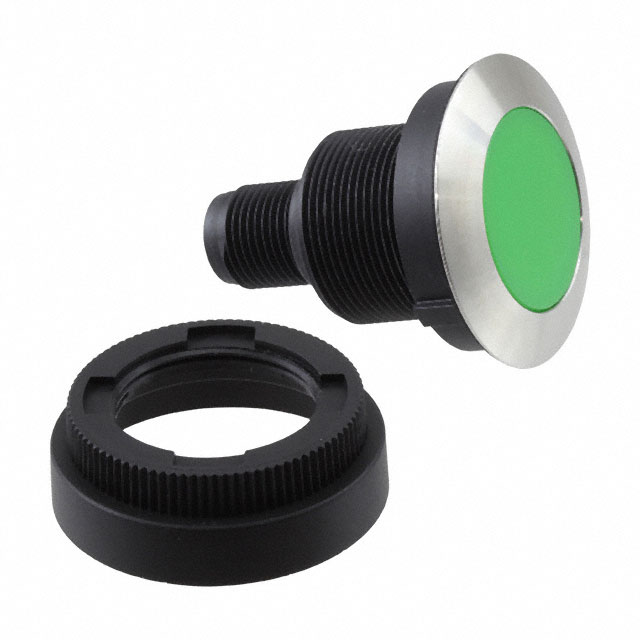

1.11.011.001/0550

Active

RAFI USA

SWITCH PUSH SPST-NO 100MA 35V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSH SPST-NO 100MA 35V

Technical Specifications

Parameters and characteristics for this part

Specification	1.11.011.001/0550

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	100 mA
Electrical Life	500000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	30.3 mm
Switch Function	Off-Mom
Termination Style	Connector
Type	Illuminated, Standard
Voltage Rating - DC	35 V

Part	Mechanical Life	Electrical Life	Current Rating (Amps)	Type	Ingress Protection	Circuit	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage Rating - DC	Switch Function	Actuator Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
RAFI USA 1.11.011.001/0550	500000 Cycles	500000 Cycles	100 mA	Illuminated Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	SPST-NO	Green	Green LED	24 V	35 V	Off-Mom	Button Flush Round	No Marking	30.3 mm	Panel Mount Front	Connector	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
