11072F-03-2-1-1
ActiveCnC Tech, LLC

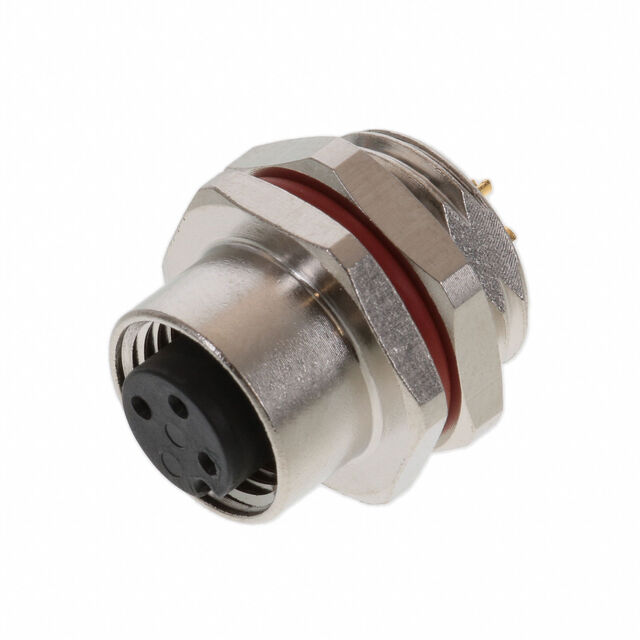

CONN PLUG FMALE 3POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11072F-03-2-1-1
ActiveCnC Tech, LLC
CONN PLUG FMALE 3POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 11072F-03-2-1-1 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M12-3 |
| Shielding | Unshielded |
| Voltage Rating | 60 VAC |
11072F Series
| Part | Primary Material | Color | Orientation | Shielding | Shell Size - Insert | Material Flammability Rating | Voltage Rating | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Connector Type | Insert Material | Contact Finish - Mating | Contact Material | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Mounting Feature | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | Metal | Silver | D | Unshielded | M12-4 | UL94 V-0 | 60 VAC | Nickel | 3 µin | 0.076 µm | 4 | Female Sockets Plug | Nylon Polyamide (PA) | Gold | Copper Alloy | Copper Alloy | 100 °C | -40 °C | 5 A | Bulkhead - Rear Side Nut | IP68 - Dust Tight Waterproof |
CnC Tech, LLC | Metal | Silver | A | Unshielded | M12-4 | UL94 V-0 | 60 VAC | Nickel | 3 µin | 0.076 µm | 4 | Female Sockets Plug | Nylon Polyamide (PA) | Gold | Copper Alloy | Copper Alloy | 100 °C | -40 °C | 5 A | Bulkhead - Rear Side Nut | IP68 - Dust Tight Waterproof |
CnC Tech, LLC | Metal | Silver | D | Unshielded | M12-3 | UL94 V-0 | 60 VAC | Nickel | 3 µin | 0.076 µm | Female Sockets Plug | Nylon Polyamide (PA) | Gold | Copper Alloy | Copper Alloy | 100 °C | -40 °C | 5 A | Bulkhead - Rear Side Nut | IP68 - Dust Tight Waterproof | |
CnC Tech, LLC | Metal | Silver | A | Unshielded | M12-8 | UL94 V-0 | 60 VAC | Nickel | 3 µin | 0.076 µm | 8 | Female Sockets Plug | Nylon Polyamide (PA) | Gold | Copper Alloy | Copper Alloy | 100 °C | -40 °C | 5 A | Bulkhead - Rear Side Nut | IP68 - Dust Tight Waterproof |
CnC Tech, LLC | Metal | Silver | A | Unshielded | M12-12 | UL94 V-0 | 60 VAC | Nickel | 3 µin | 0.076 µm | 12 | Female Sockets Plug | Nylon Polyamide (PA) | Gold | Copper Alloy | Copper Alloy | 100 °C | -40 °C | 5 A | Bulkhead - Rear Side Nut | IP68 - Dust Tight Waterproof |
CnC Tech, LLC | Metal | Silver | A | Unshielded | M12-3 | UL94 V-0 | 60 VAC | Nickel | 3 µin | 0.076 µm | Female Sockets Plug | Nylon Polyamide (PA) | Gold | Copper Alloy | Copper Alloy | 100 °C | -40 °C | 5 A | Bulkhead - Rear Side Nut | IP68 - Dust Tight Waterproof | |
CnC Tech, LLC | Metal | Silver | A | Unshielded | M12-5 | UL94 V-0 | 60 VAC | Nickel | 3 µin | 0.076 µm | Female Sockets Plug | Nylon Polyamide (PA) | Gold | Copper Alloy | Copper Alloy | 100 °C | -40 °C | 5 A | Bulkhead - Rear Side Nut | IP68 - Dust Tight Waterproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.68 | |
| 10 | $ 7.70 | |||
| 25 | $ 7.40 | |||
| 40 | $ 7.11 | |||
| 80 | $ 6.95 | |||
Description
General part information
11072F Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
