70T3339S133BFI

Obsolete

Renesas Electronics Corporation

512K X 18 SYNC, 3.3V/2.5V DUAL-PORT RAM, INTERLEAVED I/O'S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

70T3339S133BFI

Obsolete

Renesas Electronics Corporation

512K X 18 SYNC, 3.3V/2.5V DUAL-PORT RAM, INTERLEAVED I/O'S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	70T3339S133BFI

Access Time	4.2 ns
Clock Frequency	133 MHz
Memory Format	SRAM
Memory Interface	Parallel
Memory Organization	512 K
Memory Size	9 Mbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

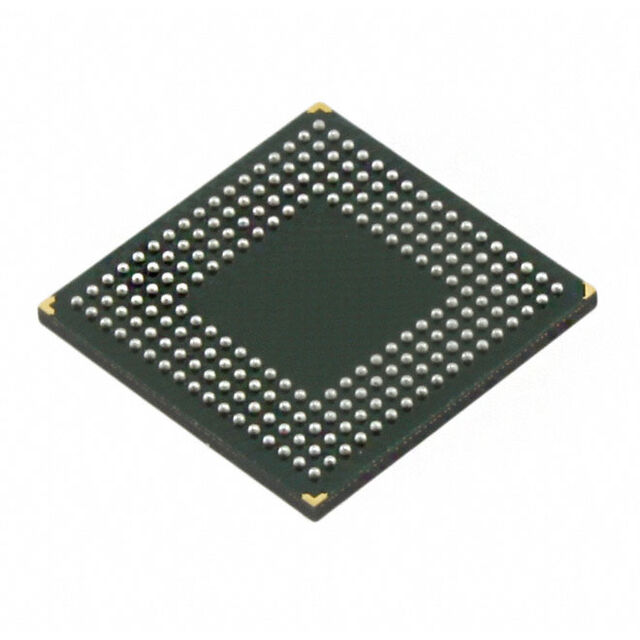

Package / Case	208-LFBGA
Supplier Device Package	208-CABGA (15x15)
Technology	SRAM - Dual Port, Synchronous
Voltage - Supply [Max]	2.6 V
Voltage - Supply [Min]	2.4 V

70T3339 Series

512K x 18 Sync, 3.3V/2.5V Dual-Port RAM, Interleaved I/O's

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Organization	Memory Size	Access Time	Operating Temperature [Max]	Operating Temperature [Min]	Memory Format	Mounting Type	Technology	Package / Case	Supplier Device Package	Memory Type	Clock Frequency	Memory Interface
Renesas Electronics Corporation 70T3339S133BC8	2.6 V	2.4 V	512 K	9 Mbit	4.2 ns	70 °C	0 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	256-LBGA	256-CABGA (17x17)	Volatile	133 MHz	Parallel
Renesas Electronics Corporation 70T3339S166BF	2.6 V	2.4 V	512 K	9 Mbit	3.6 ns	70 °C	0 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	208-LFBGA	208-CABGA (15x15)	Volatile	166 MHz	Parallel
Renesas Electronics Corporation 70T3339S133BF8	2.6 V	2.4 V	512 K	9 Mbit	4.2 ns	70 °C	0 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	208-LFBGA	208-CABGA (15x15)	Volatile	133 MHz	Parallel
Renesas Electronics Corporation 70T3339S133BCI	2.6 V	2.4 V	512 K	9 Mbit	4.2 ns	85 °C	-40 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	256-LBGA	256-CABGA (17x17)	Volatile	133 MHz	Parallel
Renesas Electronics Corporation 70T3339S166BC8	2.6 V	2.4 V	512 K	9 Mbit	3.6 ns	70 °C	0 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	256-LBGA	256-CABGA (17x17)	Volatile	166 MHz	Parallel
Renesas Electronics Corporation 70T3339S133BFI	2.6 V	2.4 V	512 K	9 Mbit	4.2 ns	85 °C	-40 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	208-LFBGA	208-CABGA (15x15)	Volatile	133 MHz	Parallel
Renesas Electronics Corporation 70T3339S133BFI8	2.6 V	2.4 V	512 K	9 Mbit	4.2 ns	85 °C	-40 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	208-LFBGA	208-CABGA (15x15)	Volatile	133 MHz	Parallel
Renesas Electronics Corporation 70T3339S200BCG	2.6 V	2.4 V	512 K	9 Mbit	3.4 ns	70 °C	0 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	256-LBGA	256-CABGA (17x17)	Volatile	200 MHz	Parallel
Renesas Electronics Corporation 70T3339S133BFGI	2.6 V	2.4 V	512 K	9 Mbit	4.2 ns	85 °C	-40 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	208-LFBGA	208-CABGA (15x15)	Volatile	133 MHz	Parallel
Renesas Electronics Corporation 70T3339S133BF	2.6 V	2.4 V	512 K	9 Mbit	4.2 ns	70 °C	0 °C	SRAM	Surface Mount	SRAM - Dual Port Synchronous	208-LFBGA	208-CABGA (15x15)	Volatile	133 MHz	Parallel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

70T3339 Series

The 70T3339 is a high-speed 512K x 18 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70T3339 can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 2.5V.
