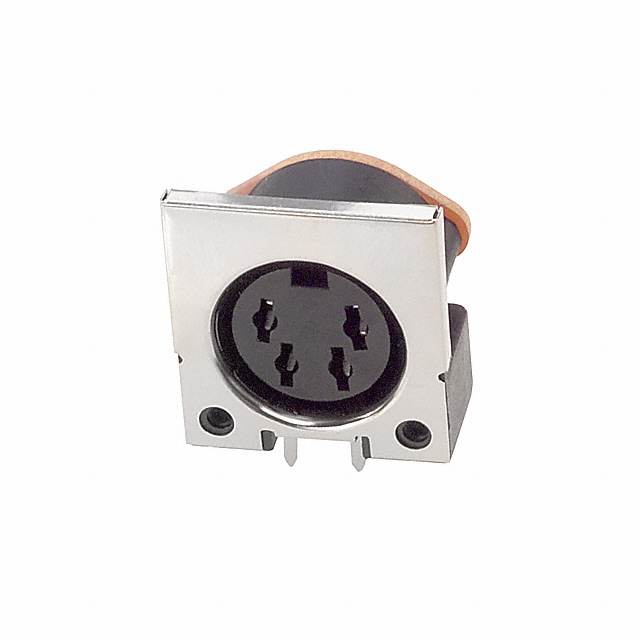

SDF-40J

Active

CUI Devices

CONN CIRCULAR DIN SKT 4 POS SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

CUI Devices

CONN CIRCULAR DIN SKT 4 POS SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-40J

Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	DIN (210 Degree)
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC

Part	Orientation	Fastening Type	Shell Size - Insert	Number of Positions	Mounting Type	Termination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Voltage Rating	Connector Type	Shielding	Primary Material	Shell Material	Features	Color	Material Flammability Rating
CUI Devices SDF-40J	Keyed	Push-Pull	DIN (210 Degree)	4	Through Hole Right Angle	Solder	2 A	85 °C	-40 °C	Brass	100 VAC	Receptacle Female Sockets	Shielded	Plastic	Polybutylene Terephthalate (PBT)	Ground	Black Silver	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
